What are the quality requirements for T - beam formwork?

Views: 0     Author: Site Editor     Publish Time: 2026-07-10      Origin: Site

Inquire

whatsapp sharing button
facebook sharing button
wechat sharing button
sharethis sharing button
What are the quality requirements for T - beam formwork?

As a senior formwork engineering expert with decades of hands-on experience in structural concrete construction, infrastructure projects, and advanced modular shuttering systems, I have witnessed firsthand how critical formwork design is to project success. In modern heavy civil engineering, bridge superstructure erection, and multi-story commercial construction, T-beams serve as vital structural components designed to carry immense bending moments and shear stresses. The ultimate structural performance, aesthetic finish, dimensional accuracy, and long-term durability of these concrete beams depend heavily on the quality, stability, and precision of the shuttering system utilized. In this technical article, we analyze the rigorous engineering standards and critical quality requirements for high-performance T-beam formwork. We address core industry pain points including deflection control, joint sealing, modular adaptability, thermal expansion management, and field reusability to help site managers and structural engineers select optimal shuttering solutions.

Quality requirements for T-beam formwork require strict adherence to material yield strength and corrosion resistance, dimensional tolerances under millimeter thresholds, rigid structural integrity to withstand hydraulic concrete pressure without deflection, tight leak-proof joint sealing, easy modular assembly and stripping mechanisms, high reusability cycles, seamless compatibility with supporting falsework, and integrated safety features like anti-slip walkways and certified lifting lugs.

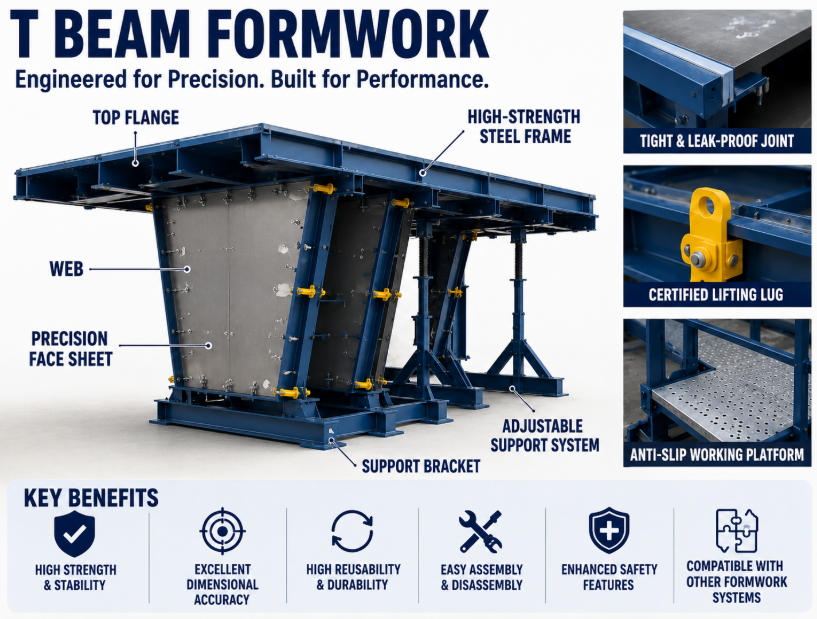

Table of Contents

  1. Material Quality

  2. Dimensional Accuracy

  3. Structural Integrity

  4. Easy Assembly and Disassembly

  5. Reusability

  6. Compatibility with Other Formwork Systems

  7. Safety Features

  8. Quality Control and Inspection

  9. Technical Synthesis and Practical Conclusions


1. Material Quality

Material quality for T-beam formwork requires top-grade structural steel, robust aluminum alloys, or premium high-density composite face sheets that possess high yield strength, superior wear resistance, and high resistance to chemical corrosion from concrete additives.

When engineering high-performance formwork for T-shaped reinforced concrete beams, material selection serves as the foundational pillar determining formwork durability, elastic deflection limits, and total lifecycle cost. In heavy industrial and civil infrastructure, steel face sheets combined with structural channel stiffeners (such as Q235B or Q345B grade carbon steel) are heavily utilized due to their high modulus of elasticity and resistance to dynamic impact. The steel plate thickness typically ranges from 4mm to 6mm depending on pour rate expectations and hydraulic pressure profiles. For projects requiring reduced self-weight without compromising load capacity, engineered structural aluminum alloys or high-grade Birch marine plywood faced with poly-coated films are deployed. To maintain surface integrity across repeated pour cycles, premium steel components must undergo hot-dip galvanization or high-durability epoxy spray painting to resist alkaline concrete environments and harsh weather exposure.

Furthermore, the physical properties of the formwork skin directly influence the surface finish of the cast concrete. High-density materials prevent moisture absorption from the concrete matrix, ensuring uniform hydration and preventing hydration discoloration or surface dusting. In modern high-speed bridge girder fabrication, thermal expansion characteristics of the formwork material must also be calculated. Steel formwork exhibits stable thermal expansion properties aligned with concrete during initial heat-of-hydration cycles, preventing localized micro-cracking along the T-beam flange-to-web transitions. Evaluating raw material mill certificates, yield stress tolerances, impact toughness testing, and surface roughness parameters forms a mandatory part of procurement quality assurance.

From our technical design perspective, European clients and major international contractors increasingly request hybrid steel-framed forms with interchangeable composite or plastic faces. European engineering practices place significant emphasis on life-cycle value, low maintenance overhead, and minimal oil release agent application. Our engineering team designs heavy-duty steel skin profiles that provide maximum stiffness while maintaining smooth contact surfaces to satisfy architectural concrete demands. High-grade structural steel formwork ensures that face sheet abrasion remains under microscopic levels even after hundreds of vibratory compaction passes.

Material Parameter

Standard Structural Steel (Q235B)

High-Strength Steel (Q345B)

Engineered Aluminum Alloy (6061-T6)

Yield Strength (MPa)

≥ 235

345

240

Tensile Strength (MPa)

370 - 500

470 - 630

290

Modulus of Elasticity (GPa)

200

206

69

Corrosion Protection Standard

Hot-Dip Galvanized / Epoxy Paint

Hot-Dip Galvanized / Epoxy Paint

Anodized / Powder Coated

Average Reusability Cycles

150 - 250

250 - 400+

100 - 200

Formwork Maintenance Note: To ensure long-term material preservation, skin surfaces must be thoroughly cleaned with high-pressure water jets and non-metallic scrapers immediately after demolding. Applying a certified chemically active form release agent evenly across the steel surface prevents concrete paste adhesion, prevents atmospheric oxidization, and ensures a pristine architectural concrete finish on subsequent pours.

2. Dimensional Accuracy

Dimensional accuracy for T-beam formwork requires precise manufacturing and assembly tolerances within strict millimeter limits to ensure accurate beam profile cross-sections, straightness, alignment, and leak-free joint fitment.

In structural concrete engineering, the geometric precision of the T-beam formwork directly translates into the structural behavior of the cured concrete beam. T-beams rely on a precise geometric balance between the top compression flange and the vertical web to carry heavy shear and bending loads. Any deviation in formwork dimensions—such as web bulge, flange tilt, cross-sectional distortion, or longitudinal camber error—can introduce secondary eccentric moments, uneven bearing seat stress distribution, or misalignment during prefabricated beam placement. Manufacturing standards for professional formwork systems mandate strict laser-verified tolerances, where panel length and width tolerances are held within +/- 1.0mm, and web diagonal deviation is restricted to less than 1.5mm across a 3-meter span.

A critical dimensional challenge in T-beam shuttering is managing the intersection joint between the horizontal flange form and the vertical web form. This 90-degree internal corner must remain perfectly square under heavy hydro-static pressure. Precision-machined corner chamfers or chamfer strips are integrated directly into the formwork design to mitigate stress concentrations in the cured concrete and prevent mortar leakage during high-frequency internal or external vibration. Furthermore, prefabricated bridge T-beams require exact camber adjustments. Modern modular formwork incorporates adjustable mechanical jack screw mechanisms or wedge systems built into the bottom soffit form, allowing engineers to pre-set vertical cambers precisely matching structural deflection calculations.

Field data from large infrastructure sites highlights that European and North American project managers prioritize modular dimensional consistency above all else. When assembling multi-segment T-beam forms spanning over 30 meters, cumulative dimensional errors can cause severe joint gaps leading to grout leakage (honeycombing). To eliminate this risk, engineered systems utilize CNC laser-cut side plates and robotic welding jigs to guarantee that every panel interlocks with high mechanical precision. Choosing a reliable, precision-engineered system like our heavy-duty steel T-beam formwork equipment guarantees sub-millimeter edge alignment, perfectly flat beam surfaces, and zero grout loss along panel connection seams.

Dimensional Property

Standard Tolerance Requirement

High-Precision Bridge Specification

Measurement Method

Overall Panel Length / Width

± 1.5 mm

± 0.8 mm

Laser Distance Meter / Steel Tape

Web & Flange Thickness Gap

± 1.0 mm

± 0.5 mm

Digital Vernier Caliper

Diagonals Squareness (Per meter)

≤1.0 mm/m

0.5 mm/m

Diagonal Laser Cross-Check

Soffit Flatness / Straightness

± 2.0 mm per 3m

± 1.0 mm per 3m

Optical Level / Precision Straight Edge

Joint Gap Opening Between Panels

0.8 mm

0.3 mm (Gasketed)

Feeler Gauge Inspection

3. Structural Integrity

Structural integrity for T-beam formwork requires robust load-bearing capability and high flexural rigidity to resist lateral dynamic concrete pressures, self-weight, compaction vibration, and construction live loads without exceeding permissible deflection thresholds.

Concrete pouring into T-beam molds creates complex hydraulic and dynamic pressure distributions. Unlike flat wall forms, T-beam shuttering must withstand simultaneous vertical loads on the flange soffit and severe lateral pressure along the deep vertical web. According to ACI 347 (Guide to Formwork for Concrete) and DIN 18218 calculations, wet concrete lateral pressure can easily exceed 60 to 80 kPa during rapid vertical pour rates and vigorous internal needle vibration. To prevent structural failure, panel bowing, or excessive elastic deflection, the formwork must be engineered using finite element analysis (FEA) to verify rib spacing, tie-rod tension capacities, and strongback beam stiffness.

The primary deflection criterion for premium T-beam shuttering is restricted to L/500 or L/400 of the span, ensuring that cured concrete beams maintain crisp structural lines and accurate architectural profiles. Structural framing typically incorporates vertical stiffeners (ribs) spaced at 300mm to 450mm centers, reinforced by horizontal double-channel walers (strongbacks). High-tensile tie rods (such as Dywidag 15/17mm or 20/22mm tie bars) pass through or over the web to anchor opposing side panels together, transferring lateral concrete pressure into pure tensile forces across the tie system. In self-consolidating concrete (SCC) applications where full hydrostatic liquid head pressures occur, formwork structural design must accommodate hydrostatic pressures exceeding 100 kPa without structural yield.

In actual industrial field applications, European clients frequently demand formwork designs that minimize or completely eliminate internal tie-rods passing through the T-beam web. Through-holes can compromise waterproof integrity and require extra labor for post-pour grouting. In response to this demand, our engineering team designs external rigid truss-braced framing systems. By transferring lateral forces to heavy bottom tie-beams and top clamping arms, the system delivers high structural rigidity, keeps the beam web pristine, and simplifies rebar cage installation.

Structural Load Category

Design Basis / Load Factor

Primary Affected Component

Engineering Deflection Limit

Wet Concrete Hydrostatic Pressure

24 to 26 kN/m³ (Adjusted for pour rate)

Vertical Web Face Plate & Ribs

$\le$ L / 500 (Max 1.5 mm)

Dynamic Vibration & Impact

2.0 to 3.0 kPa Live Load allowance

Waler Channels & Tie Rods

Elastic stress < 60% Yield

Flange Construction Live Load

1.5 to 2.5 kPa (Equipment + Workers)

Flange Cantilever Brackets

$\le$ L / 400

Stripping & Thermal Stresses

Mechanical Stripping Force Vectors

Hinge Joints & Lifting Eyes

Zero Permanent Deformation

Formwork Operating Principle: The load transfer mechanism relies on transforming out-of-plane lateral bending moments from the face sheet directly into vertical ribs, which then load horizontal strongback walers. High-tensile tie systems or external rigid trusses anchor these walers, maintaining structural equilibrium during high-speed, deep-pour concrete placement.

4. Easy Assembly and Disassembly

Easy assembly and disassembly for T-beam formwork requires modular component designs, quick-locking hardware, self-aligning panel connections, and integrated mechanical stripping aids that minimize labor requirements and shorten cycles.

On modern fast-track construction sites, labor efficiency and cycle time dictate overall project profitability. Traditional custom-built timber shuttering requires skilled carpentry, extensive site measuring, and slow manual bolting, resulting in lengthy turnaround times per beam pour. Advanced engineered T-beam systems solve this bottleneck through standardized modular construction. Side panels, soffit plates, end bulkheads, and flange wings are prefabricated into standardized lengths (e.g., 1.5m, 3.0m, 6.0m) featuring pre-drilled pin patterns. Quick-connect wedge clamps, alignment couplers, and taper pins enable workers to lock adjacent panels together in seconds using basic hand tools like hammers and ratchets, drastically reducing crane tie-up time.

Equally critical is the stripping process (disassembly). Early demolding without damaging concrete corners requires engineered stripping mechanisms. Modern steel T-beam formwork incorporates mechanical drop-heads, turnbuckle side braces, and hinged fold-down flange panels. By simply rotating turnbuckles or releasing eccentric wedge locks, the side forms automatically retract 15 to 30 millimeters away from the concrete face. This controlled release prevents mechanical impact damage to delicate flange edges and chamfers, protecting concrete quality while keeping workers safe.

From an operational standpoint, site contractors frequently inquire about how to optimize cycling speed without sacrificing structural safety. European clients heavily emphasize ergonomic design—ensuring individual hardware components weigh under 15 kg for safe manual handling, while large multi-meter panel groups are rigid enough for single-pick crane movements. Implementing an engineered system like our modular high-efficiency modular T-beam formwork solution allows job sites to achieve rapid 24-to-36-hour casting cycles per beam line, delivering massive labor savings over multi-span bridge projects.

Assembly Component

Traditional Bolted System

Advanced Modular System

Efficiency Gain / Impact

Panel Connection Hardware

Standard Bolts, Nuts & Washers

Quick-Wedge Clamps & Taper Pins

70% faster assembly time per joint

Stripping Mechanism

Manual Pry Bars & Wedges

Integrated Mechanical Turnbuckles

Eliminates concrete edge chipping

Alignment Control

Manual Plumb Bob & Shims

Self-Aligning Taper Guide Pins

Instant automatic panel alignment

Crane Utilization

Multiple small-piece lifts

Gang-assembled multi-meter lifts

Up to 50% reduction in crane hours

5. Reusability

Reusability for T-beam formwork requires rugged structural design, wear-resistant skin faces, heavy-duty perimeter framing, and easily replaceable wear parts to achieve over 100 to 300 successful pour cycles.

The total cost of formwork per square meter of formed concrete drops dramatically as the number of reuses increases. High reusability is therefore a primary quality benchmark for contractors investing in heavy T-beam shuttering assets. To survive repeated cycles of assembly, high-pressure concrete pouring, internal vibration, mechanical stripping, site transport, and storage, the formwork must resist permanent mechanical deformation. Perimeter frames must be built with continuous robotically welded profile tubes or heavy channel sections that protect face plate edges from battering during handling.

Surface abrasion and chemical degradation are the main factors limiting formwork service life. Steel skins must be engineered with sufficient corrosion allowance and hard surface coatings to withstand repeated abrasive contact with coarse concrete aggregates. Where composite or plywood face sheets are used, heavy-duty edge sealing with polyurethane or epoxy compounds is mandatory to prevent water ingress, ply delamination, and swollen edges. Furthermore, high-use modular systems feature sacrificial wear plates at high-impact zones, such as vibrator mounting brackets and drop-grout locations, allowing easy field replacement without scrapping entire main panels.

In our technical exchanges with global bridge fabricators, clients consistently emphasize that initial procurement costs are secondary to total lifetime cost-per-use. European customers, in particular, expect formwork assets to perform reliably across multiple consecutive project contracts. By engineering high-yield steel frames with modular surface skins, contractors can refurbish skin plates after 150 pours while retaining 100% of the primary structural sub-frame, maximizing capital return on investment.

Formwork Skin Category

Expected Cycle Life

Primary Failure Mode

Maintenance / Restoration Method

Heavy-Duty Steel Face (5mm-6mm)

250 - 400+ pours

Surface scratching, denting

Polishing, spot welding, recoating

High-Density Birch Plywood (Film-Faced)

30 - 50 pours

Edge swelling, face scratching

Edge sealing, epoxy putty repair

Plastic / Steel-Composite Hybrid Panel

100 - 150 pours

Local gouging, deep scratch

Thermal plastic welding / patch repair

Maintenance Tip for High Reusability: Never use heavy steel sledgehammers directly on formwork frames during stripping. Always utilize built-in mechanical stripping screws or soft rubber/brass mallets on designated striking points. Regularly apply anti-spatter coatings around wedge housing slots to prevent concrete slurry buildup that hinders mechanical locking movement.

6. Compatibility with Other Formwork Systems

Compatibility for T-beam formwork requires standardized interface dimensions, adjustable connection brackets, and modular grid patterns that integrate smoothly with shoring towers, prop systems, and falsework frameworks.

T-beam formwork rarely operates as an isolated unit; it functions within a comprehensive jobsite shoring and temporary support ecosystem. Whether casting precast T-beams in a dedicated site yard or pouring cast-in-place T-girder bridge decks in situ, the shuttering system must connect cleanly to underlying shoring towers, heavy-duty scaffolding, or traveler gantry cranes. Achieving seamless system compatibility requires adherence to standard international modular grids (such as 50mm or 100mm hole pitch spacing) and standardized waler profile dimensions that accept universal flange clamps and tie-rod assemblies.

In cast-in-place bridge construction, T-beam formwork must accommodate varying cross-sectional geometry, such as flared end-diaphragms, variable web depths, and longitudinal superelevations. Compatible formwork systems feature telescoping soffit supports, adjustable side-sloping brackets, and modular filler panels. These allow standard T-beam forms to adapt to curved roadway alignments or variable-depth beam profiles without requiring costly custom fabrication on site. Universal adapter brackets also allow standard steel walers to couple directly with timber H20 beams or aluminum secondary joists.

In multi-span infrastructure contracts, clients value formwork systems that can easily adapt across different project phases. Based on our field engineering experience, European bridge projects often pair heavy steel web forms with lightweight aluminum soffit systems to optimize weight distribution on staging towers. Utilizing flexible, highly compatible equipment like our standardized precision-engineered T-beam formwork framework ensures flawless integration across diverse shoring setups, reducing equipment rental costs and eliminating field retrofitting delays.

Interface Boundary

Connecting Equipment

Standardization Requirement

Integration Purpose

Bottom Soffit Interface

Heavy-Duty Shoring Towers / Screw Jacks

Standard beam seat shoe / Pin plate

Vertical height adjustment & load transfer

Flange Support Wing

Adjustable Diagonal Props / Scaffold Arms

Universal turnbuckle fork end

Flange angle adjustment & deck alignment

Waler & Tie Connection

Dywidag Tie Rods / Cast Nuts

Standard 15/17mm or 20/22mm threading

Universal lateral tie anchoring

End Bulkhead Joint

Rebar Coupler Rubber Plugs / Shear Keys

Pre-slotted modular bulkhead plates

Accommodating prestressing strands & rebar

7. Safety Features

Safety features for T-beam formwork require certified lifting lugs, fully integrated access walkways, guardrails, toe boards, anti-slip working decks, and secure tie-off points to guarantee worker safety during high-elevation concreting operations.

Occupational safety is a non-negotiable requirement on modern construction sites. T-beams are often cast at elevated heights or within crowded precasting beds, where working conditions present fall hazards and heavy overhead crane risks. A high-quality T-beam formwork system must be designed in strict compliance with international safety codes, such as OSHA guidelines and European EN 12811 standards for temporary work equipment. Safety cannot be an afterthought; it must be structurally embedded directly into the primary formwork design.

Integrated concrete pouring platforms should be mounted to the top flange formwork, providing workers with a stable, flat surface during concrete placement and vibrator operation. These platforms must feature non-slip expanded metal or textured steel grating, continuous 1.1-meter high guardrails, intermediate knee rails, and 150mm toe boards to prevent tools from dropping. For crane handling, formwork panels must include certified lifting eyes or welded hoisting lugs engineered with a minimum safety factor of 3.0 or 4.0 against ultimate tensile failure. This ensures safe gang-lifting of assembled formwork sets during windy conditions or rapid site relocations.

Safety audits on major international construction sites focus heavily on worker access safety and load rating transparency. European regulations require all integrated walkways and ladder systems to carry clear structural load stamps (e.g., rated for 2.0 kN/m² live load). Our technical engineering team designs every T-beam shuttering unit with ergonomic, self-locking safety latches and dedicated safety harness lanyard anchorages, providing site personnel with full fall protection during all staging, pouring, and stripping operations.

Safety Component

Engineering Standard / Spec

Safety Factor / Capacity

Primary Hazard Prevented

Integrated Hoisting Lugs

EN 13155 / Lifting Accessories

3.0x to 4.0x WLL Safety Factor

Crane hoisting failure & dropped loads

Working Platform Guardrails

OSHA 1926.502 / EN 13374 Class A

1.1m Height; 1.0 kN top-rail point load

Personnel fall from height

Access Walkway Decking

Perforated Anti-Slip Steel / Mesh

2.0 kN/m² Uniform Live Load

Slips, trips, and wet concrete falls

Personal Fall Arrest Anchors

EN 795 Class A / OSHA Certified

$\ge$ 22 kN Ultimate Tensile Strength

Fall arrest protection for vibrator crew

8. Quality Control and Inspection

Quality control and inspection for T-beam formwork require rigorous factory non-destructive testing, trial pre-assembly, weld inspections, turnbuckle torque checks, and systematically documented field clearance protocols.

To guarantee zero-defect performance on the construction line, quality control protocols must span the entire lifecycle of the T-beam formwork—from raw steel cutting in the manufacturing plant to daily pre-pour inspections on the construction site. At the factory level, certified quality inspectors perform 100% visual and ultrasonic testing (UT) or magnetic particle inspection (MPI) on critical structural welds, particularly along waler connections and lifting lug brackets. Factory mock-up trial assemblies are conducted for every custom project, verifying that multi-segment forms fit together seamlessly, camber lines align precisely, and sealing gaskets compress uniformly before shipping.

Once on site, field engineers execute a rigorous pre-pour inspection checklist before sign-off. First, dimensional alignment is verified using laser total stations to check longitudinal straightness, web plumbness, and flange elevation. Second, tie-rod torque values and turnbuckle tension nuts are checked with calibrated torque wrenches to prevent joint slippage under wet concrete loads. Third, all panel seams, soffit junctions, and bulkhead penetrations are inspected for gap tightness. Synthetic rubber foam gaskets or neoprene sealing strips must be compressed between panel flanges to guarantee zero slurry leakage during high-frequency vibration.

Contractors operating under strict ISO 9001 and bridge authority standards view formal inspection documentation as essential risk management. Based on practical technical field reviews, European project supervisors enforce strict "hold points" prior to concrete placement. Our technical field support personnel routinely assist client engineering teams by supplying customized quality assurance checklists, torque specification tables, and laser alignment guidelines. This ensures that every cast T-beam complies fully with structural geometry and surface smoothness requirements.

Inspection Stage

Quality Check Item

Acceptance Criterion

Verification Tool

Factory Manufacturing

Structural Weld Soundness

Zero crack defects (AWS D1.1 / ISO 5817 Class C)

Ultrasonic (UT) / Dye Penetrant (PT)

Factory Pre-Assembly

Full-Length Mock-Up Fitment

100% pin alignment without forced distortion

Physical Trial Assembly

Site Pre-Pour Check

Web Plumbness & Alignment

$\le$ 2.0 mm vertical deviation over full height

Laser Total Station / Plumb Bob

Site Pre-Pour Check

Tie Rod & Wedge Tightness

Specified torque value fully reached

Calibrated Torque Wrench

Post-Demolding Check

Concrete Surface & Edge Finish

No honeycombing, spalling, or grout lines

Visual Inspection & Straightedge
