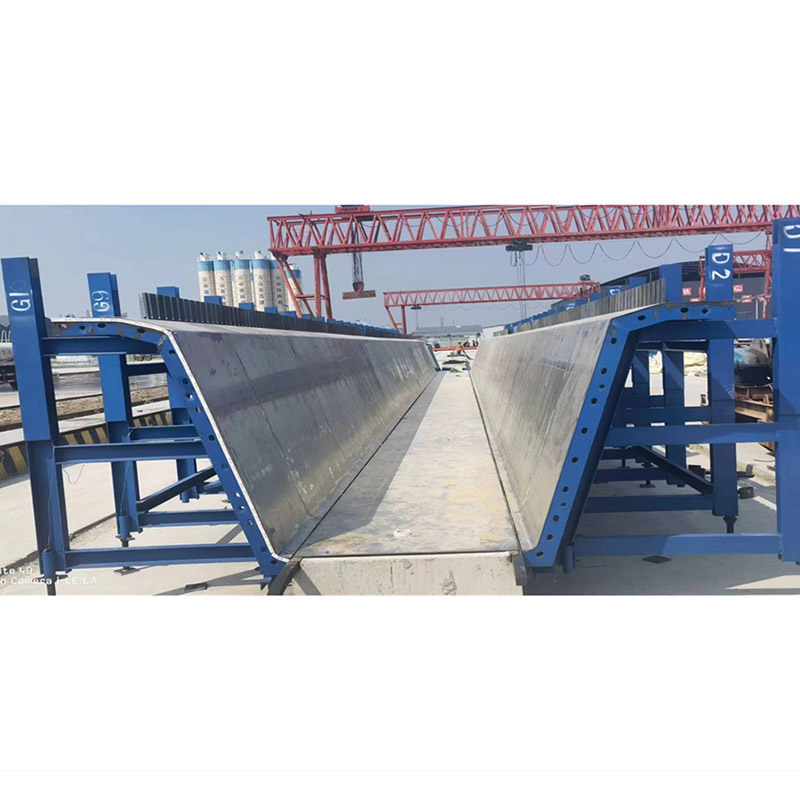

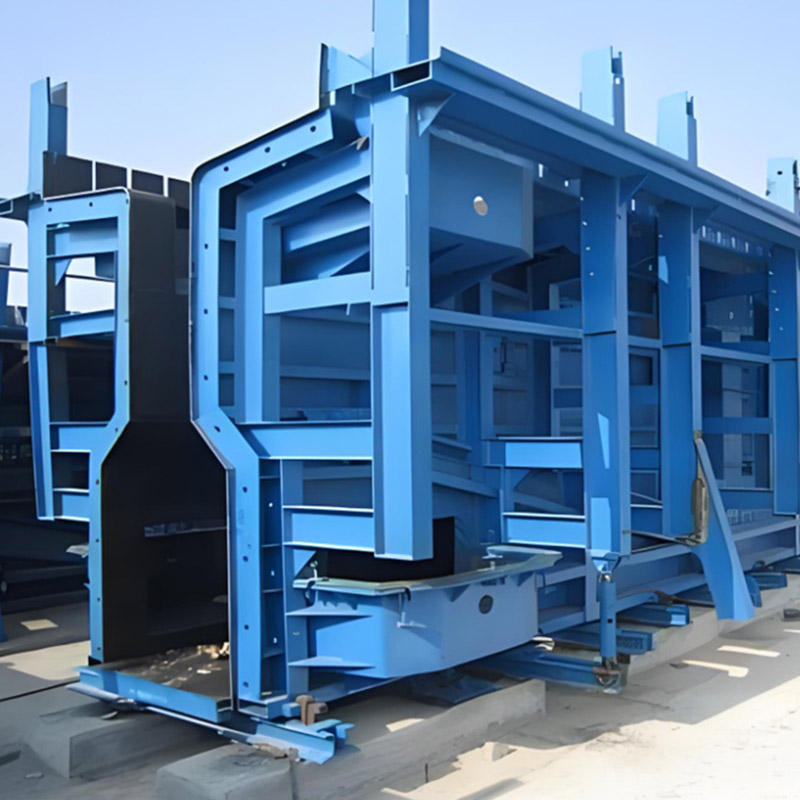

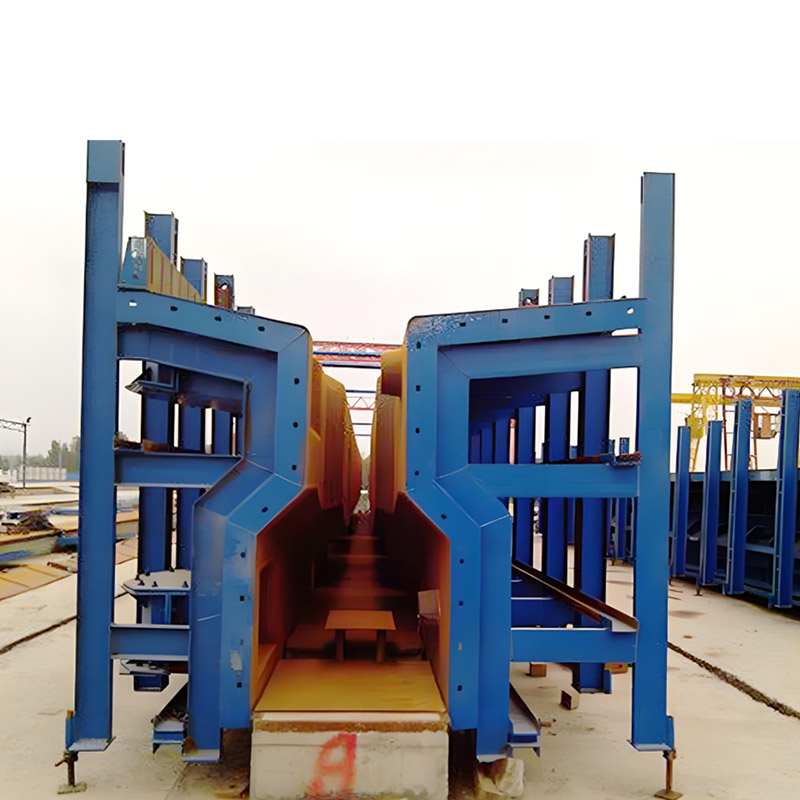

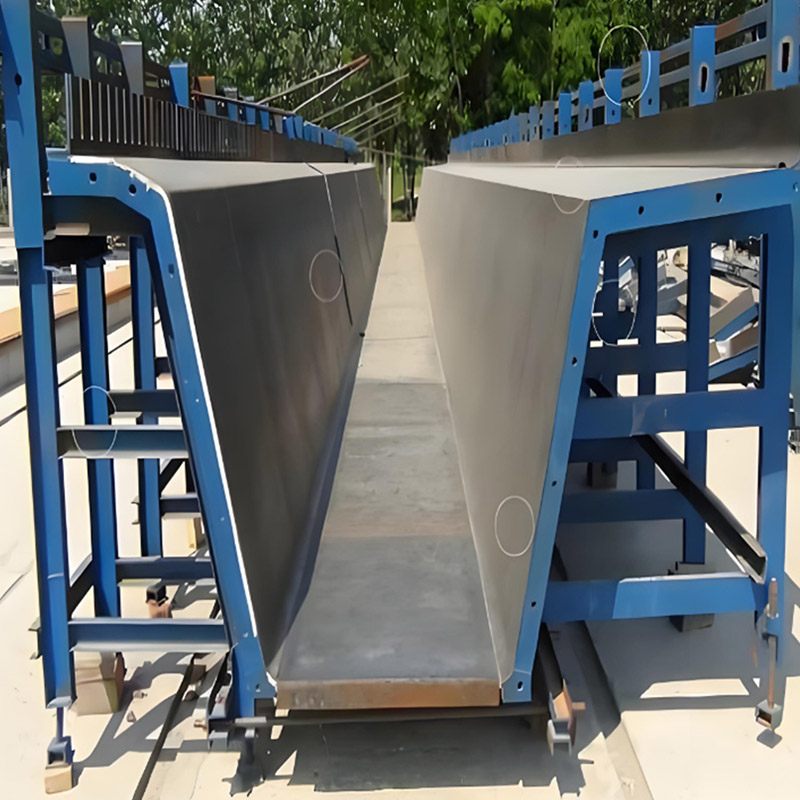

Based on extensive formwork expertise, we have developed a self‑propelled hydraulic T‑beam formwork with bag‑type demolding for efficient, high‑quality production. Comprising side, end, and bottom molds, this high‑strength system is easily assembled, features adjustable sizing, and supports one‑time pouring.
Designed for universal forming application, the formwork is highly reusable, track‑mobile, and enables hydraulic automated erection. It reduces labor and crane reliance, making it ideal for efficient, repeatable T‑beam fabrication.
>> Product Advantage
1. Simple structure, clear force application, with high rigidity and strong torsional resistance.
2. The equal cross-section form can greatly save formwork, accelerate the bridge construction progress, and is simple and economical.
3. The upper and lower parts of the bridge can be constructed in parallel, which greatly shortens the construction period.
4. There is no need to fabricate components at high altitudes, the quality is easy to control, and batch production can be carried out in one place, thereby reducing costs.
>> Technical Parameters
Material | Steel |
Application | Other |
Feature | Reusable, Easily Assembled, High Strength, adjustable size, universal forming application, one-time pouring |
Design Style | Industrial |
After-sale Service | Online Technical Support, Onsite Installation, Onsite Training |
Project Solution Capability | graphic design, 3D model design, total solution for projects |
Place of Origin | Tianjin, China |
Brand Name | Jinchen Zhihui |
Model Number | T-type beam formwork |
Place of Origin | Tianjin,China |
Size | Project Drawing |
Warranty | 1 year |
Brand Name | Jinchen Zhihui |
Model Number | Formwork System |
Product name | Concrete Steel Formwork |
Application | Concrete Construction |
Type | Heavy Duty |
Certificate | ISO9001 |
Name | Bridge Beam Formwork |
>> Product Uses
Here are four specific application scenarios of T beam formwork:
1. Highways & Major Roads: Used for the precast production of T-beams for bridges on expressways and national/provincial trunk highways.
2. Railways & Passenger Dedicated Lines: Used for the precast production of T-beams for railway bridges, including high-speed and heavy-haul lines.
3. Urban Elevated Roads & Interchanges: Used for the precast production of T-beams for urban viaducts, elevated expressways, and large-scale interchanges.
