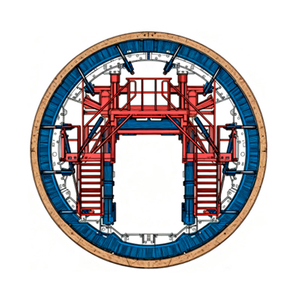

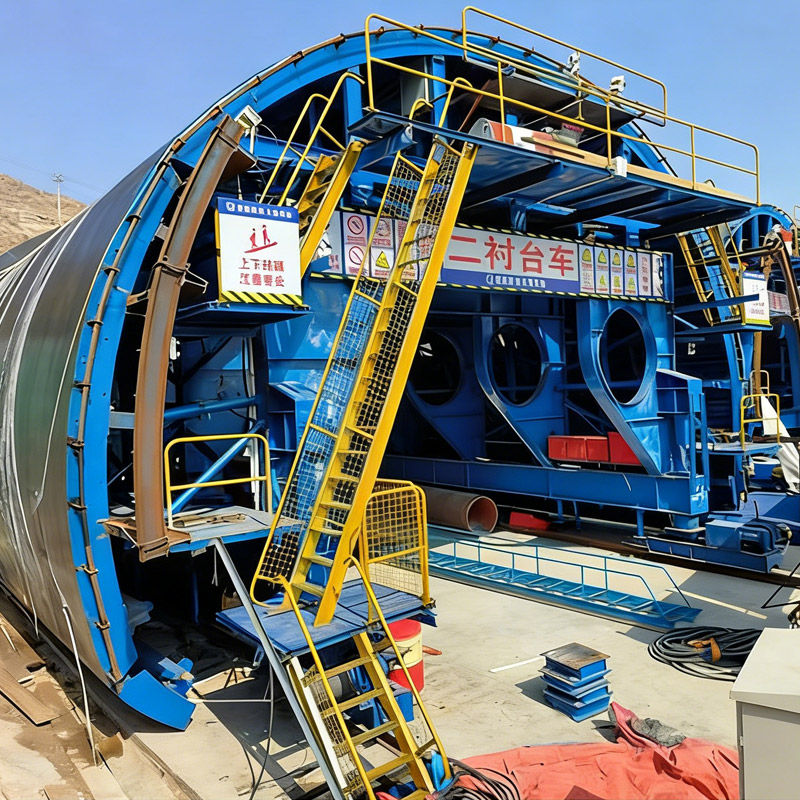

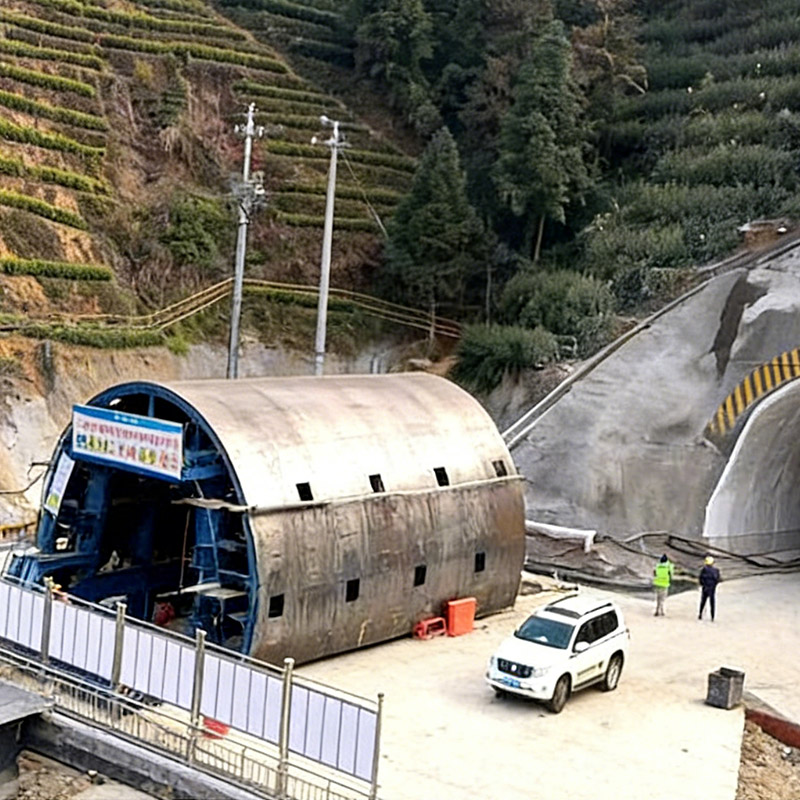

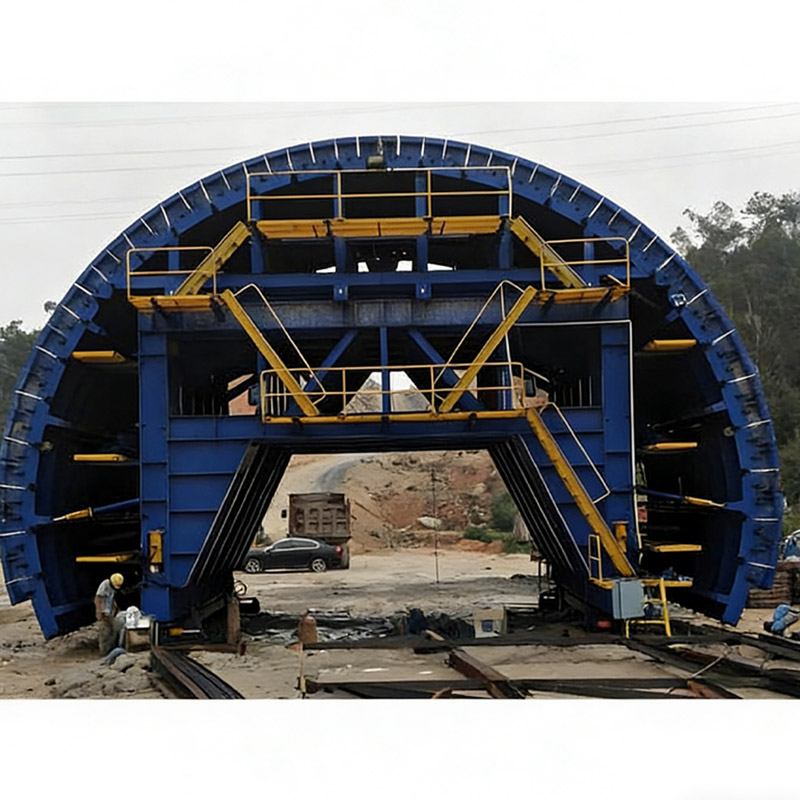

Engineered by Jinchen Zhihui, the tunnel lining trolley is built for versatility and operator‑focused efficiency. It features a robust High Strength structure with an adjustable size design, supporting one‑time pouring to ensure superior concrete surface quality. Its modular system enables easy assembly and offers universal forming application, making it suitable for highways, railways, hydraulic works, and public or defense tunnels.

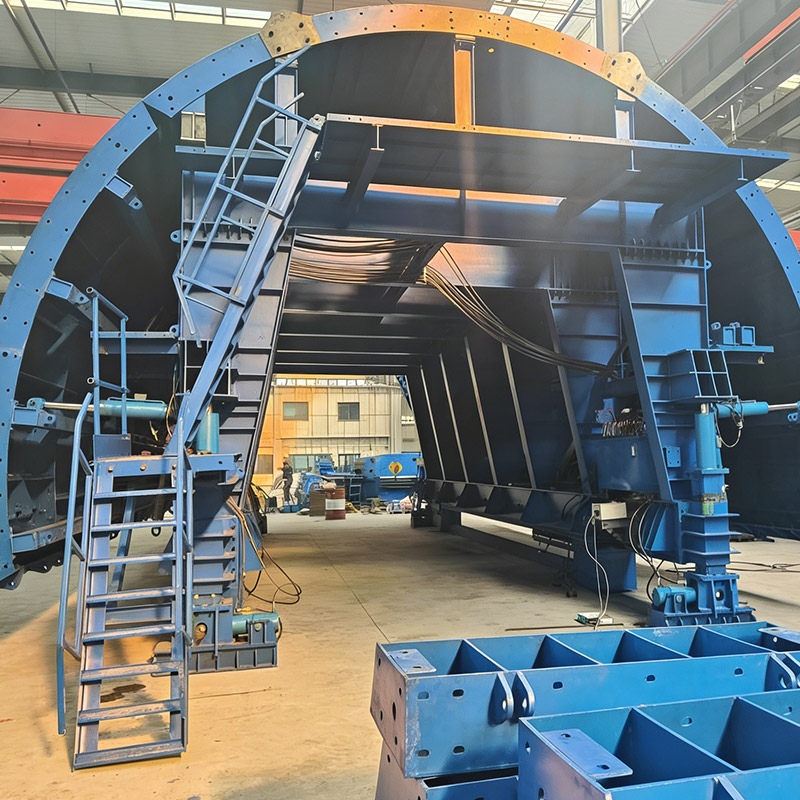

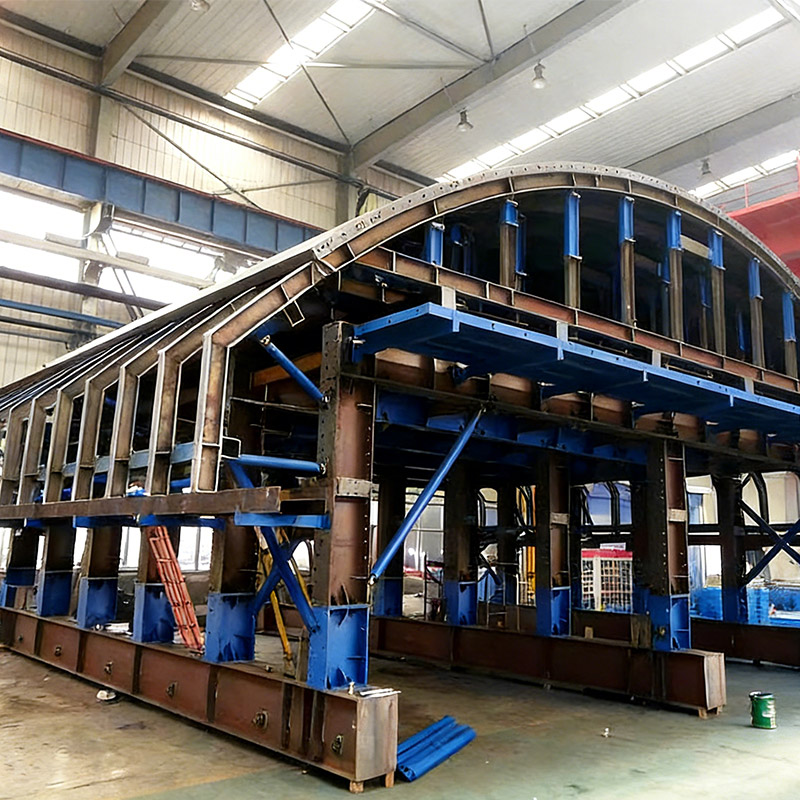

Key components—including the formwork assembly, travel mechanism, portal frame, main/slave travel units, lateral hydraulic cylinders, and support jacks—are integrated into a reusable, reliable system designed for durable performance across diverse construction environments.
>> Product Advantage
1. Reliable structural design: The trolley's robust construction and significant load-bearing capacity ensure stable performance in complex and dynamic work environments.
2. Humanized construction design: The trolley's user-oriented design not only facilitates operation but also optimizes the use of human, material, and financial resources.
3. Good tunnel forming surface: The side-top arch structure of the trolley delivers high-quality and uniform tunnel surface finishing, laying a reliable foundation for subsequent construction work.
>> Technical Parameters
Tolerance | EN 1090,EN1993,EN12812,ISO4306 |
Design | Technical teams from Jinchen Zhihui |
Project Solution Capability | 3D model design, total solution forprojects |
Brand | Jinchen Zhihui |
Application | On-site tunnel concrete Construction |
Color | High qualified anto-corrosion and rust-proof paintings |
Performance | One-time Monolithic Pouring |
Formwork design | Project Drawings After-sale Service |
After-sale Service | Online technical support with viedo installment, Onsite Training |
>> Product Uses
Here are two specific application scenarios ofmachinery:
1. Heavy-duty tunnel formwork system used in subway stations, road/train tunnels, and hydraulic galleries.
2. Hydraulically propelled, self-supporting formwork equipment for tunnel lining applications.
