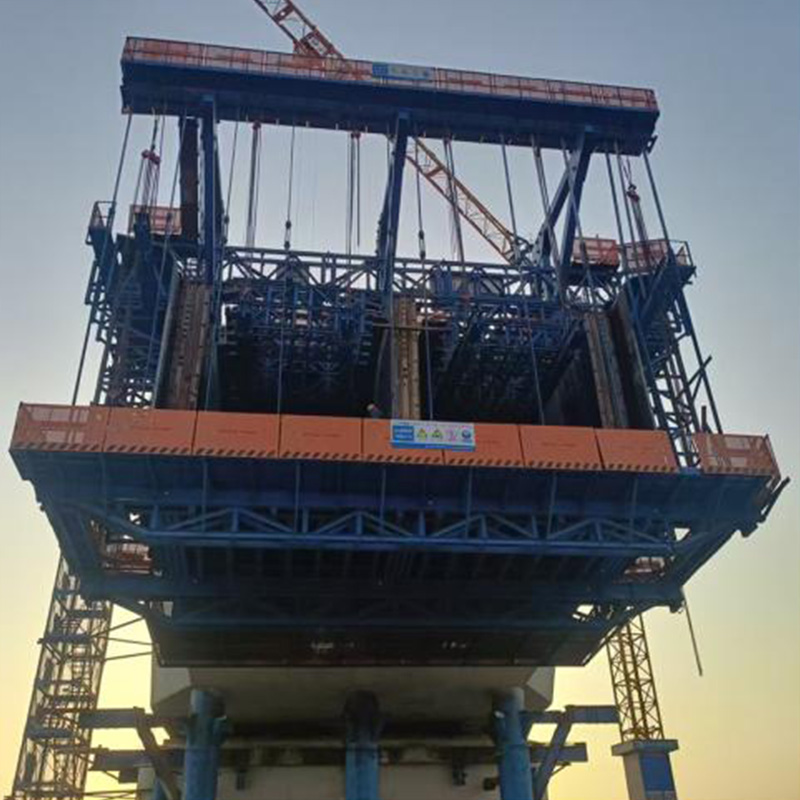

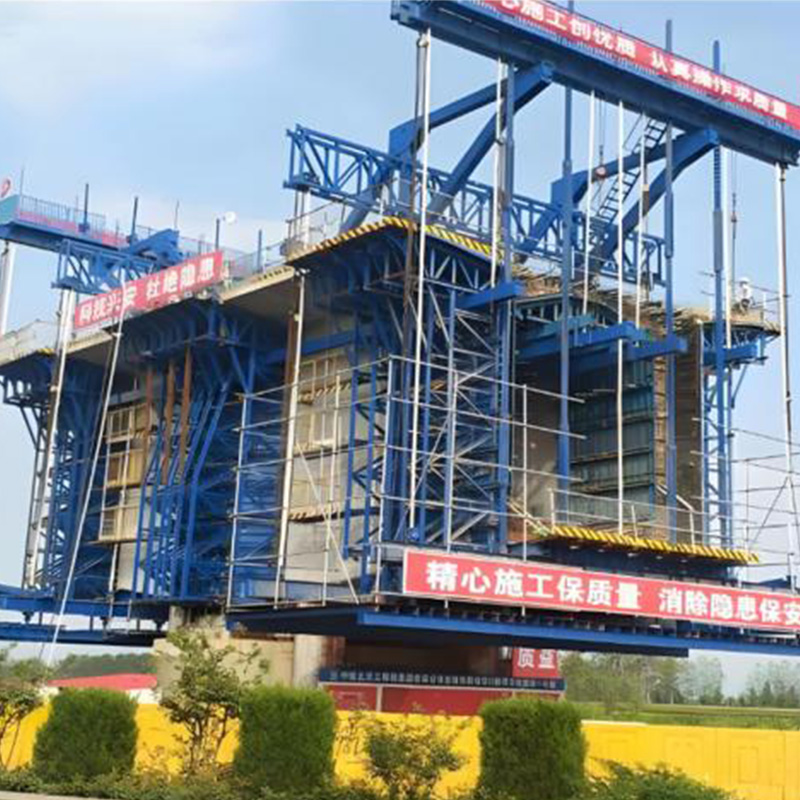

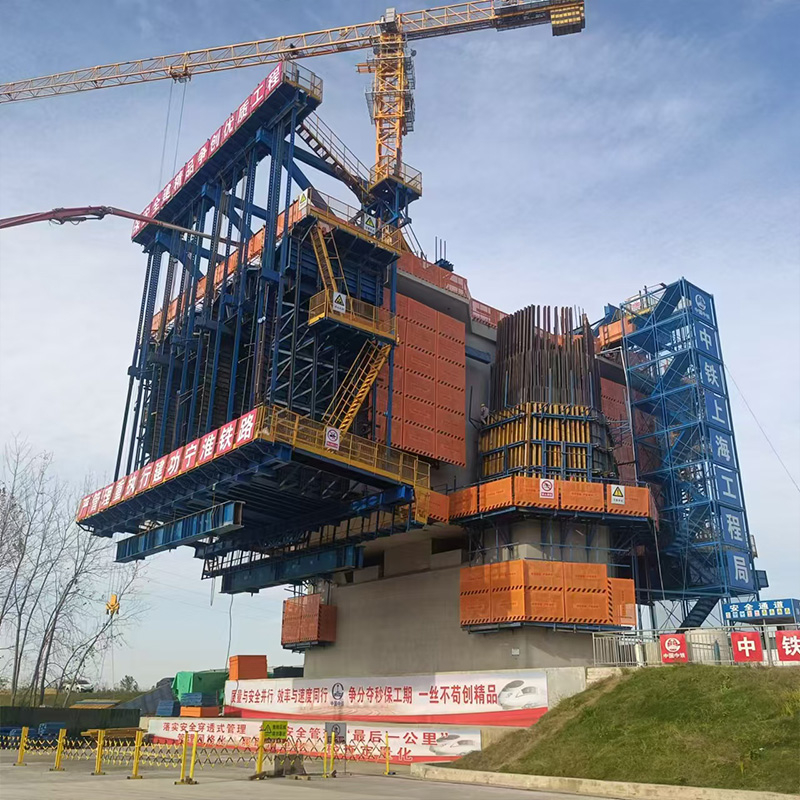

This cantilever form traveler is designed for the efficient construction of single-column cable-stayed bridge towers. Featuring a highly reusable and easily assembled structure with high-strength materials, its core components include the main girder, suspension points, bottom basket, and adjustable formwork. The system supports one-time concrete pouring, significantly accelerating project timelines while optimizing material usage.
Ideal for medium-span bridge projects, it is universally applicable to the cantilever casting of various bridge types, including continuous beam bridges, T-beam bridges, continuous rigid-frame bridges, and cable-stayed bridges. Its compact and robust design ensures reliable performance, making it a versatile solution for scenarios that demand rapid construction and cost efficiency.
>> Product Advantage
1. The cantilever form traveler features a lightweight design with a high utilization rate, placing it within the lightweight cantilever form traveler category.
2. It boasts an appealing appearance and a clearly defined structure, with major joints connected by pins, facilitating easy assembly and disassembly to save time and labor.
3. The travel system is thoughtfully engineered with segmented tracks, allowing for continuous recycling as they can be extended during the movement of the hanging basket.
4. The inner and outer formwork is suspended via sliding beams, enabling one-step positioning of the formwork. The sliding beams also function as fixed guide beams, achieving dual purposes with a single component.
5. The outer formwork is designed from top to bottom in a segmented, height-adjustable configuration. Surplus sections can be removed in accordance with variations in the beam structure, fully ensuring construction safety.
6. The structure is simple, the force is clear, the overall structure has high rigidity and is not easy to deform.
>> Technical Parameters
After-sale Service | Online technical support, Onsite Training |
Formwork design | Jinchen Zhihui supply |
Project Solution Capability | 3D model design, total solution for projects |
Place of Origin | Tianjin,China |
Brand Name | Jinchen Zhihui |
Size | Non-standard, custom-made |
Product name | Steel Concrete Column Formwork |
Painting | With corrosion and rust resistance paint |
Packing | Warehouse loading and packed in 40HQ container |
Type | Recyclable |
>> FAQ
Q1: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU ,Express Delivery.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, Credit Card.
Q2: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3: How about after-sales services?
A: We provide pre-installment viedoes or on-site instruction.
Q5: What do you need in order to make a brief design and quotation when we have a construction project to be built?
A: Structural 3D drawings and section drawings.
