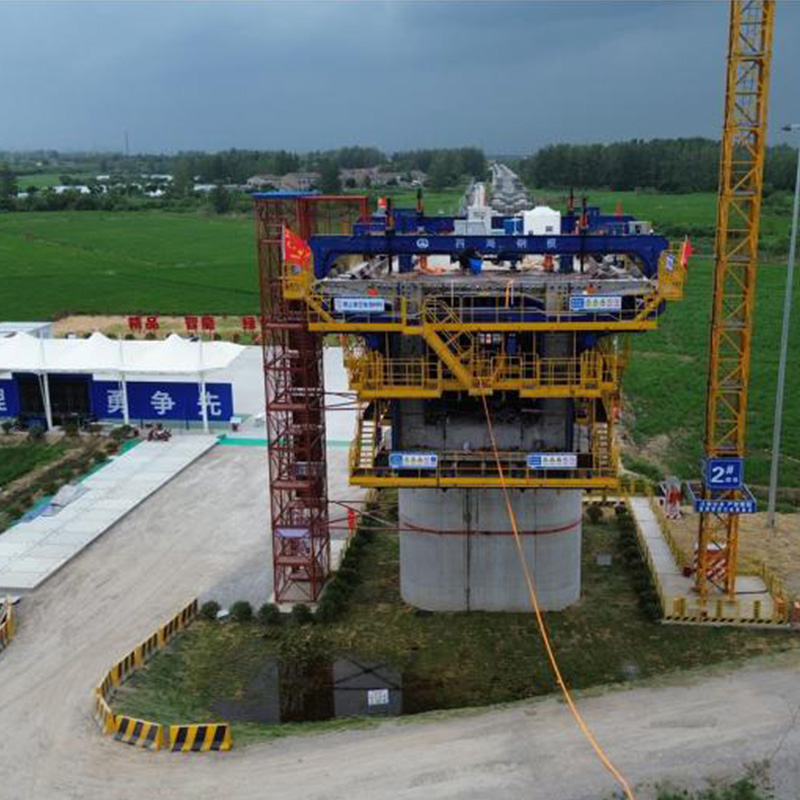

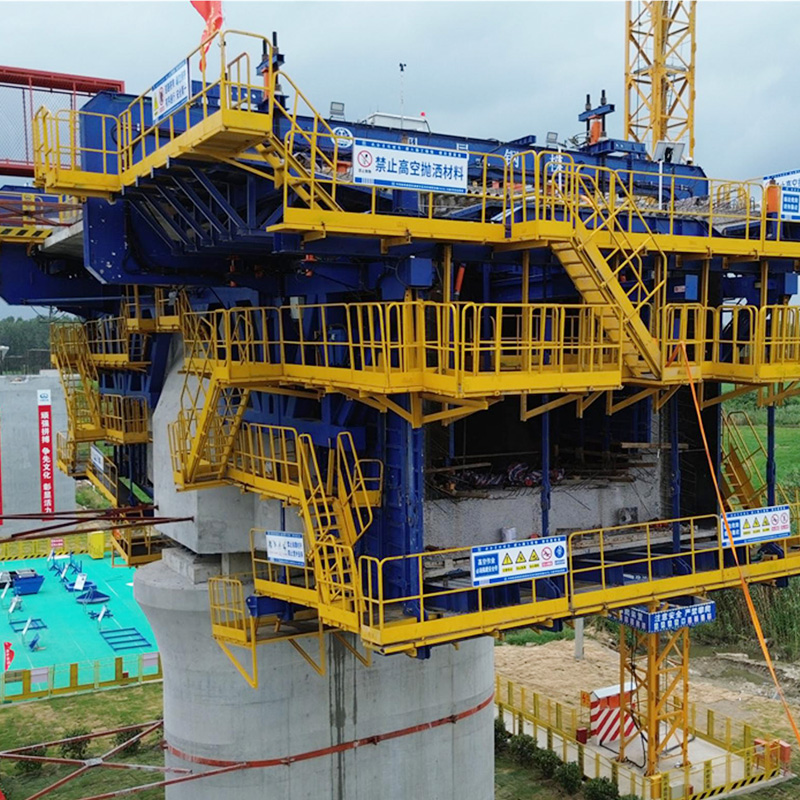

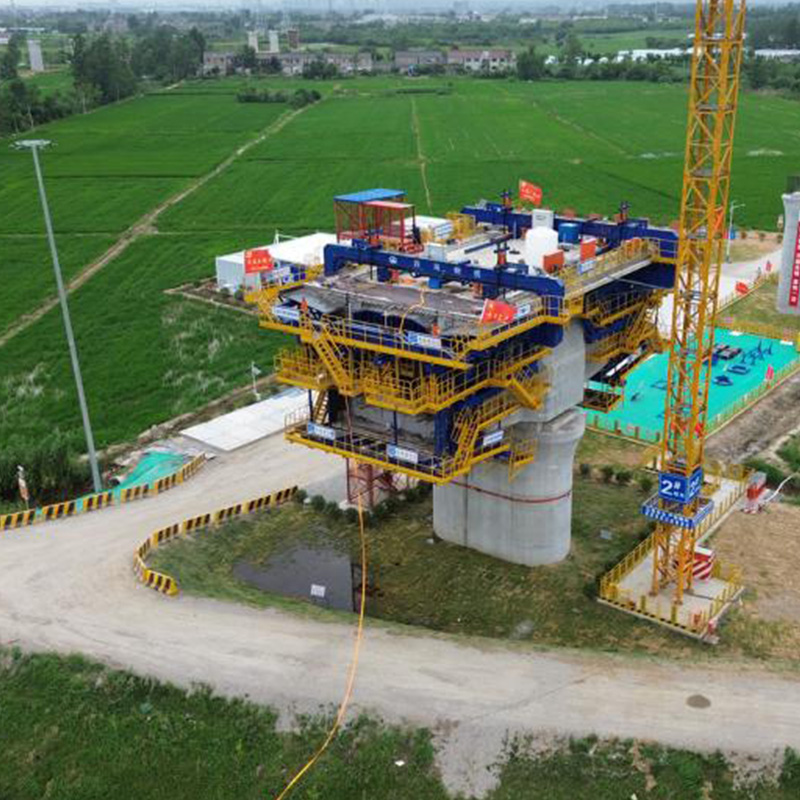

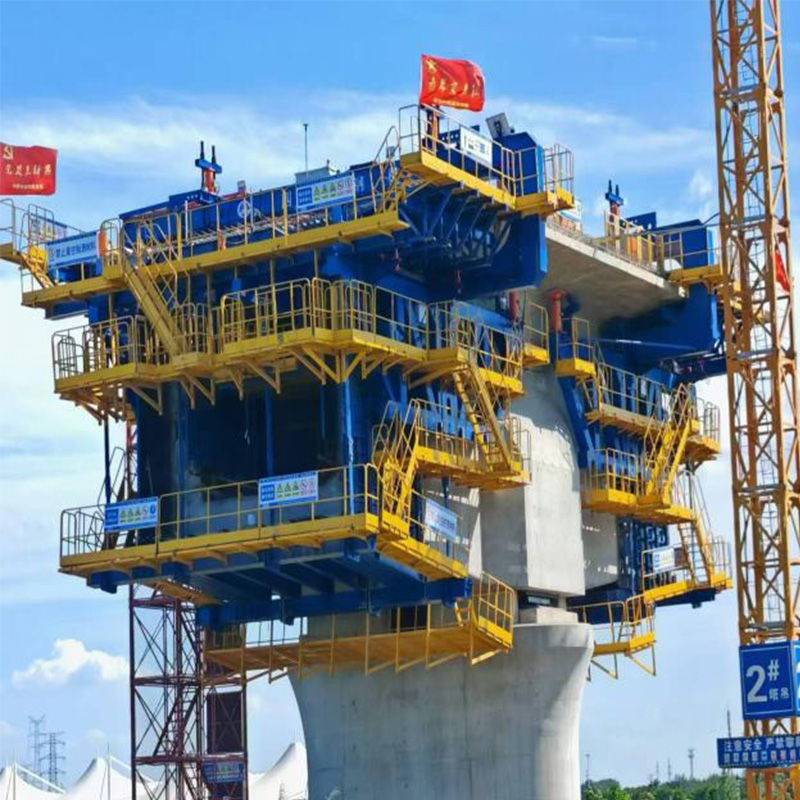

This viaduct climbing jump formwork system is designed for high-quality formwork applications in tall bridge piers and high-rise buildings. As an efficient supporting equipment in cantilever bridge construction, its integrated cantilever form traveler module enables one-time pouring and offers universal forming application to accommodate various cross-sections and height requirements. The formwork is constructed from high-strength materials and features an adjustable size design, allowing adaptation to different project specifications. Key advantages include high reusability, easy assembly, and recyclable modular components, which significantly improve construction efficiency and material turnover. It serves as an ideal solution for the rapid and economical construction of high-pier and tall tower structures.
>> Product Advantage
1. Design & Structure: Its innovative bottom-supported design provides enhanced overall stability and safety.
The modular structural approach significantly minimizes the number of anchor points required on site.

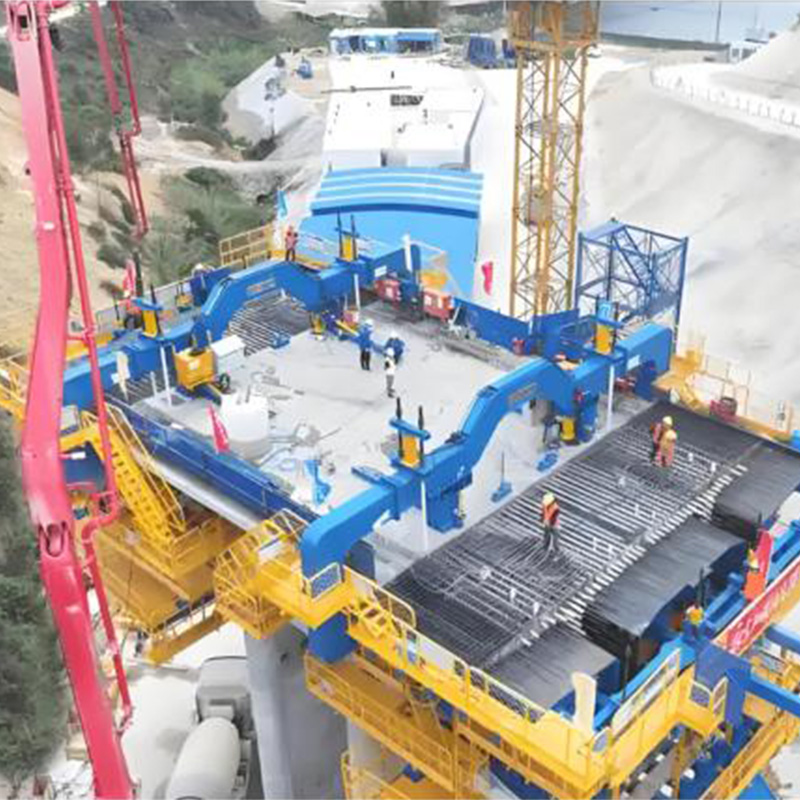

By integrating automated control, intelligent monitoring, and information management systems, it elevates the level of automation for on-site construction tasks. It fully liberates the beam surface work area, enabling a feasible approach for the factory prefabrication of segmental steel cages.
2. Safety: Real-time equipment and construction safety are ensured through over 30 safety data checks and multi-point on-site monitoring.
3. Efficiency: The track requires no anchoring or pressure beams, allows one-person operation, and can be relocated in as little as 20 minutes.
Automated formwork adjustment greatly boosts efficiency while substantially lowering workers' physical strain.

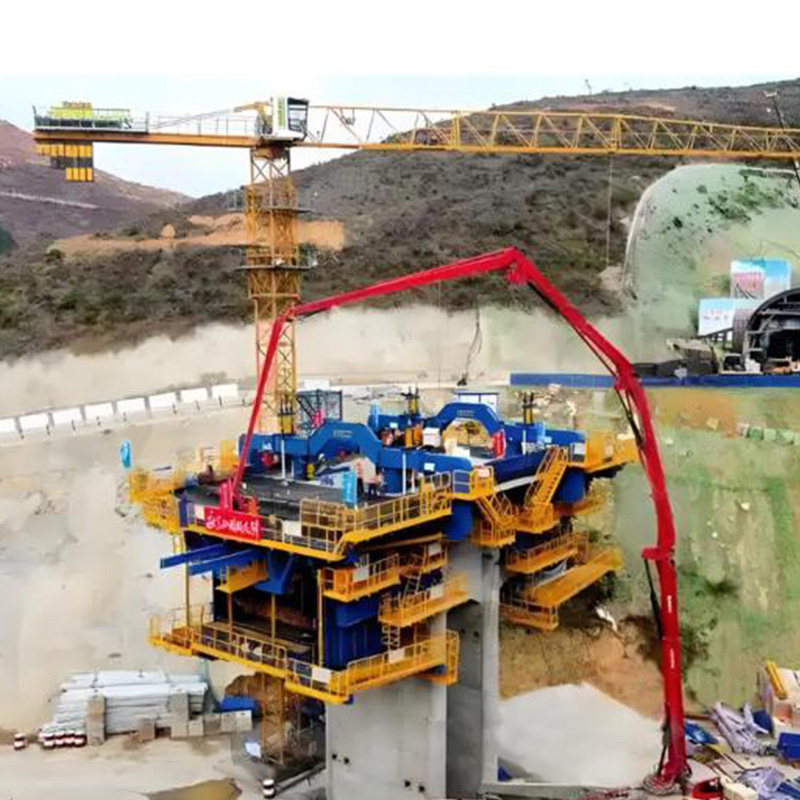

3. Unobstructed pouring: The clear, interference-free pouring zone significantly simplifies coordination with equipment like tower cranes and concrete pump trucks.
4. Intelligence: More than 30 smart technologies are implemented in key processes, including symmetrical synchronous movement, precise turning on flat curves, and automated template and elevation adjustment.
>>Technical Parameters
After-sale Service | Online technical support with viedo installment, Onsite Training |
Tolerance | EN 1090,EN1993,EN12812,ISO4306 |
Formwork design | Technical teams from Jinchen Zhihui |
Project Solution Capability | 3D model design, total solution forprojects |
Place of Origin | Tianjin, China |
Type | Climbing |
Brand | Jinchen Zhihui |
Application | Concrete Construction |
Color | High qualified anto-corrosion and rust-proof paintings |
Performance | One-time Monolithic Pouring |
Formwork design | Project Drawings |
>> Product Uses
Here are three specific application scenarios:
1. railways: Specifically designed for high-precision and efficient climbing formwork solutions for high-speed railway piers, simply supported beams, and continuous beams.
2. highways: Suitable for standardized and modular rapid construction of large-scale overpass bridges and interchange projects.
3. municipal engineering: Serves urban viaducts, river-crossing bridges, and other municipal engineering needs, adaptable to on-site pouring requirements in complex environments.
>> FAQ
Q1: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU ,Express Delivery.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, Credit Card.
Q2: How can we guarantee quality?
High quality raw materials from Chinese big brand factory; High precision manufacturing equipments with 30kw laser cutting machine. World welding standard for the formwork;
Q3: What do you need in order to make a brief design and quotation when we have a construction project to be built?
A: Structural drawing and concrete section drawings.
