What are the performance advantages of the automatic invert trestle?

The automatic invert trestle delivers significant performance advantages by enabling continuous, non-stop subterranean traffic flow over active invert excavation zones, reducing construction cycle times by up to 40%, enhancing concrete curing structural integrity through integrated hydraulic formwork, and minimizing manual labor risks via automated self-propulsion and centralized electro-hydraulic controls.

Table of Contents

• Structural Engineering and Load-Bearing Capacity

• Hydraulic Kinematics and Automated Self-Propulsion

• Tunnel Construction Cycle and Logistics Optimization

• Concrete Pouring Quality Control and Formwork Integration

• Safety Enhancements and Operational Risk Mitigation

• Economic Return and Lifecycle Cost Efficiency

• System Selection and Strategic Conclusion

Structural Engineering and Load-Bearing Capacity

The primary structural performance advantage of the automatic invert trestle lies in its high-rigidity truss design and elevated moment of inertia, which allow the bridge deck to span active invert excavation zones and support gross vehicle weights exceeding 60 to 100 metric tons without transferring harmful deflection stresses to green concrete.

In subterranean tunnel construction, the invert serves as the foundation arch that stabilizes the side walls and resists floor heave. Traditional invert construction methods require clearing the passage or relying on temporary earth ramps, which severely disrupts the movement of mucking trucks, concrete mixers, and utility vehicles. An engineered trestle acts as a heavy-duty mobile bridge. By utilizing box-girder or high-strength lattice truss configurations fabricated from Q355B or Q460 steel, the structure distributes concentrated wheel loads directly to the consolidated tunnel floor ahead of and behind the invert pouring section.

From a structural dynamics standpoint, minimizing flexural deflection under live load is critical. Excessive deck deflection creates dynamic impact loads when heavy mucking trucks travel at operational speeds, which can cause micro-cracking in adjacent, curing invert segments. Advanced trestles are engineered with high stiffness safety factors (typically L/800 or stricter), ensuring that dynamic impact forces are dampener-absorbed through heavy rubber bearing pads and rigid steel outriggers.

Furthermore, client requirements across international markets—especially in high-spec European railway projects—emphasize modular bridge deck configurations that adapt to varying tunnel radiuses and track gauges. Modern engineering designs incorporate adjustable transverse beam spacing and expandable side walkways. By deploying a robust heavy-duty self-propelled invert trestle, contractors ensure that mucking lorries, concrete transit mixers, and 50-ton gantry transport units maintain uninterrupted 24/7 access to the tunneling face regardless of the invert pouring state.

Structural Parameters Comparison Table

Hydraulic Kinematics and Automated Self-Propulsion

Automated self-propulsion eliminates the requirement for external winches, excavators, or overhead cranes, utilizing integrated hydraulic walking cylinders and heavy-duty travel bogies to achieve smooth, precise longitudinal relocation along the tunnel axis.

The operational transition of invert equipment between casting cycles represents a major time sink if performed manually. Traditional trestles require disconnecting structural components and pulling the assembly forward using heavy excavation machinery. This introduces severe safety hazards, risks structural alignment drift, and damages side wall concrete. Modern automated systems integrate a self-contained electro-hydraulic drive unit featuring dual-acting hydraulic thrust cylinders, vertical leveling jacks, and steel wheel travel assemblies mounted on temporary ground rails or direct rock foundations.

The automated walking sequence operates through synchronized hydraulic kinematics. When a concrete curing cycle is completed and the invert formwork is stripped, hydraulic vertical jacks lower the main trestle structure onto its travel bogies or walking feet. Longitudinal drive cylinders extend, pushing the entire multi-ton superstructure forward in calculated stroke increments (typically 1.0 to 1.5 meters per cycle). Proportional hydraulic valves and PLC-controlled displacement sensors ensure synchronous extension between the left and right drive tracks, preventing skewing or mechanical binding against the tunnel walls.

European client preferences highlight a strong demand for wireless remote control interfaces coupled with multi-stage hydraulic lock valves. Operators can control advancing, leveling, and formwork positioning sequences from a safe vantage point outside the invert vault. This automated self-stepping capability reduces total relocation time from an industry average of 6 to 8 hours down to less than 40 minutes, directly unlocking higher excavation rates in drill-and-blast cycles.

Hydraulic Drive and Locomotion Specifications

Tunnel Construction Cycle and Logistics Optimization

The primary logistical advantage of an automated invert trestle is the complete decoupling of invert concrete pouring from face excavation logistics, allowing continuous bi-directional traffic while the invert arch is excavated, rebar-fitted, poured, and cured underneath.

In subterranean excavation using the sequential excavation method (SEM) or drill-and-blast, cycle time predictability is critical for maintaining project economics. The typical invert construction sequence involves mucking out bottom rock, installing waterproofing membranes and steel reinforcement, setting formwork, pouring invert concrete, and waiting for initial strength gain. Without an elevated trestle, all vehicular access to the tunnel face stops during pouring and early curing, creating severe cumulative delays.

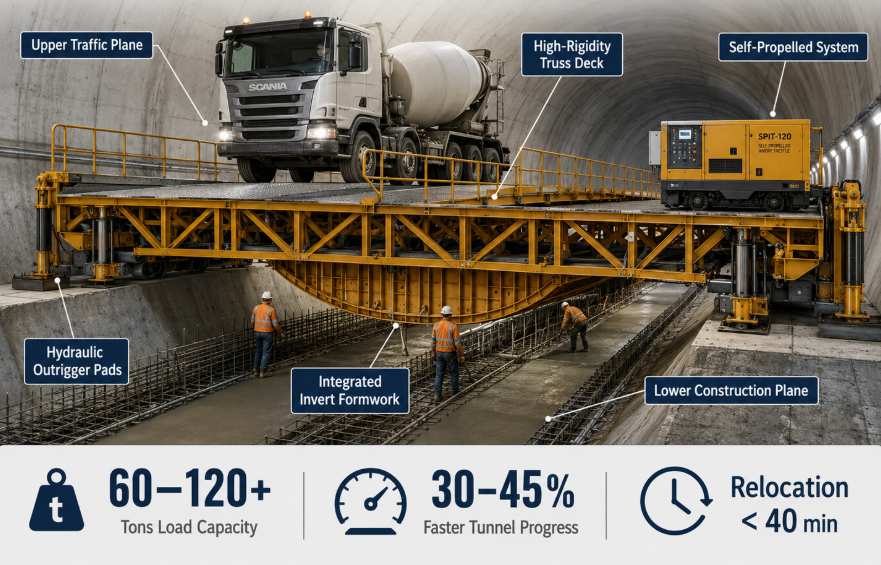

By installing an elevated trestle with clear span clearances ranging from 12 to 24 meters, contractors create two independent operational planes:

1. Upper Traffic Plane: Heavy dump trucks, personnel carriers, shotcrete rigs, and utility vehicles pass smoothly over the top deck of the trestle.

2. Lower Construction Plane: Excavators, rebar crews, and concrete vibrator teams work in parallel underneath the bridge structure.

This dual-tier spatial organization eliminates traffic bottlenecks at the invert face. Field data from major mountain tunnel projects indicates that implementing an automated self-propelled invert trestle technology increases overall linear tunneling progress by 30% to 45%. Furthermore, modern trestle designs incorporate modular utility hangers along the outer girders, allowing high-voltage electrical cables, ventilation ducts, water supply lines, and drainage hoses to bypass the invert work zone cleanly without risk of vehicle damage.

Operational Cycle Time Reduction Analysis

1. Elimination of Traffic Hold Times: Vehicle waiting times at the invert margin drop to zero because the upper deck maintains a continuous two-lane or wide single-lane passage.

2. Parallel Subtask Execution: Reinforcement steel tying and drain channel installation occur beneath the trestle while face drilling or rock bolting continues overhead without disruption.

3. Rapid Hydraulic Stripping and Advancing: Stripping bottom formwork and advancing the entire trestle unit takes under an hour, seamlessly synchronizing with 6-meter or 9-meter daily excavation advances.

Concrete Pouring Quality Control and Formwork Integration

Integrating hydraulic bottom formwork panels, high-frequency vibrator mounts, and adjustable side joint sealing plates into the trestle framework guarantees precise lining geometry, eliminates honeycombing, and prevents cold joints in high-water-table tunnel environments.

The bottom invert arch is subjected to intense hydrostatic groundwater pressure and structural ground movement throughout the operational lifecycle of a tunnel. Any construction defects in the invert concrete—such as insufficient compaction, segregation, geometric deviation, or improper cold joint execution—can lead to severe water ingress and structural cracking over time. Manual invert formwork positioning is prone to misalignment due to floating during concrete placement and uneven bedrock contours.

Automated invert trestles overcome these defects by integrating heavy steel formwork suspended directly beneath the main longitudinal girders via hydraulic positioning arms. The integrated formwork features heavy curved faceplates rolled to the exact tunnel radius, stiffened with internal channel ribs to resist the buoyant hydrostatic forces generated by fluid concrete. High-frequency electric or pneumatic vibrators are directly bolted to the external formwork ribs, ensuring uniform concrete consolidation across thick invert slabs (800 mm to 1500 mm) without requiring manual immersion vibrating teams in dangerous confined zones.

Why is this hydraulic formwork integration so effective in practice? Practical tunneling experience shows that hydraulic positioning actuators maintain constant holding force against the side wall construction joints during the pour. This prevents paste leakage along the waterstop channels, yielding a seamless, watertight joint between the invert slab and the subsequent arch vault lining. European infrastructure authorities consistently favor this automated formwork integration due to its ability to meet strict geometric tolerances (≤± 5 mm radius error).

Concrete Quality Performance Metrics

Safety Enhancements and Operational Risk Mitigation

Automated invert trestles significantly reduce subterranean site risks by separating heavy haulage traffic from pedestrian workers, eliminating overhead falling object hazards through full-cover steel decking, and incorporating multi-tiered hydraulic safety lockouts.

Subterranean invert construction zones are historically classified among the most hazardous areas in underground civil engineering. The combination of heavy vehicle traffic moving through narrow tunnel cross-sections, wet ground conditions, suspended electrical lines, and active excavation machinery creates elevated risk profiles for ground personnel. Manual trestle repositioning operations further compound these hazards through heavy rigging, winch cable tensioning, and suspended load shifts.

Automated self-propelled trestles establish a controlled, highly engineered working environment through several integrated safety features:

1. Traffic-Worker Physical Separation: Ground crews performing rebar installation and concrete finishing work underneath the structural canopy are fully protected from passing heavy vehicles by high-strength steel decking, continuous kickplates, and heavy side guardrails.

2. Anti-Slip and Debris Containment Decking: Bridge decks are constructed using heavy chequered steel plates or high-friction serrated steel grating fitted with underlying catch trays. This design prevents oil, mud, water, or dropped hand tools from falling through onto personnel working in the lower vault.

3. Hydraulic Load-Holding Fail-Safes: All vertical support cylinders and lifting jacks are fitted with pilot-operated check valves and mechanical locking collars. In the event of a sudden hydraulic hose failure or power loss, the cylinders instantly lock in position, preventing structural sagging or formwork collapse.

4. Emergency Stop Interlocks: Centralized control boxes located at all four corners of the trestle allow immediate shutdown of locomotion drive units in emergency situations. Integrated proximity sensors and optical warning beacons alert personnel whenever the equipment initiates auto-propulsion walking modes.

Maintenance and Operational Precautions: Inspect hydraulic hose lines daily for surface abrasion and pressure integrity; ensure mechanical safety locking pins are fully engaged whenever personnel enter beneath suspended hydraulic formwork; clear debris and slurry accumulation from ground travel rails prior to launching the self-propulsion cycle.

Economic Return and Lifecycle Cost Efficiency

While the initial capital expenditure for an advanced invert trestle is higher than temporary structural steel framing, the equipment yields a high net return on investment (ROI) by reducing site labor requirements by up to 50%, accelerating overall schedule timelines, and offering reusable modular architecture across multiple project lifecycles.

Evaluating the financial viability of tunneling machinery requires moving beyond simple upfront procurement costs to examine total operational cost per linear meter of completed tunnel. Traditional invert construction incurs massive cumulative expenses through slow advance rates, high labor allocation for formwork assembly, frequent equipment maintenance, and contractual delay penalties.

When deploying an advanced advanced self-propelled invert trestle systems, financial optimization is achieved across four primary vectors:

1. Direct Labor Savings: Automated positioning and self-propulsion eliminate the need for dedicated crane crews, rigging teams, and large formwork setup crews. A typical 12-person invert crew can be streamlined down to 4 or 5 operators and technicians.

2. Schedule Compression Benefits: Accelerating invert cycle rates allows the entire tunneling operation to advance faster. In major infrastructure contracts where daily indirect overhead costs (overhead, site power, ventilation, equipment rental) exceed tens of thousands of dollars, completing a project several months ahead of schedule generates substantial financial savings.

3. Elimination of Auxiliary Moving Equipment: Eliminating external winches, track tractors, or excavator towing setups reduces fleet fuel consumption, equipment wear-and-tear, and machinery maintenance overhead.

4. Capital Asset Reusability: Modern self-propelled trestles feature modular pin-connected truss frames and adjustable telescopic cross-beams. Once a project is completed, the main longitudinal girders, hydraulic power packs, and control systems can be easily reconfigured for different tunnel cross-sections, rail gauges, and vault shapes in future contracts.

Financial and Operational Impact Matrix

System Selection and Strategic Conclusion

Selecting the optimal automatic invert trestle configuration requires an in-depth evaluation of tunnel cross-section geometry, maximum anticipated vehicle axle loads, ground geology, and concrete curing logistics. Structural engineers and project directors must specify critical requirements early in the project procurement phase:

1. Clear Span and Dynamic Payload Requirements: The trestle must be designed to accommodate the heaviest haulage unit in the project fleet (e.g., loaded 60-ton mucking trucks) with an adequate dynamic impact factor, while spanning the entire excavation and curing footprint.

2. Geotechnical Adaptability: In squeezing rock or high-water-table conditions, outrigger pad contact pressures must be engineered to prevent localized floor bearing failure on soft invert rock.

3. Electro-Hydraulic Redundancy: Dual pump configurations and manual override valves ensure that the bridge can be moved safely even during site power interruptions.

In conclusion, the automatic invert trestle represents a significant advancement in subterranean civil engineering technology. By combining high-rigidity load-bearing structural trusses with precise, automated hydraulic self-propulsion and integrated arch formwork, this equipment resolves the classic conflict between subterranean haulage traffic and invert concrete curing. Contractors deploying these advanced systems achieve superior concrete lining quality, enhanced worker safety, and optimized project delivery schedules in modern tunnel infrastructure projects worldwide.
