Self-propelled hydraulic inverting bridge formwork construction steps

The construction process of a Self-Propelled Invert Trestle consists of six core sequential phases: foundation preparation and track layout, hydraulic self-propelled movement and precise alignment, hydraulic template expansion and anchoring, concrete pouring and synchronized mechanical vibration, hydraulic stripping and structural retraction, and post-pour curing alongside trestle advance. Implementing this equipment eliminates heavy crane dependency, maintains continuous overhead muck transportation, ensures uniform invert lining thickness, and significantly shortens the tunneling cycle duration.

At a Glance

Introduction and System Overview

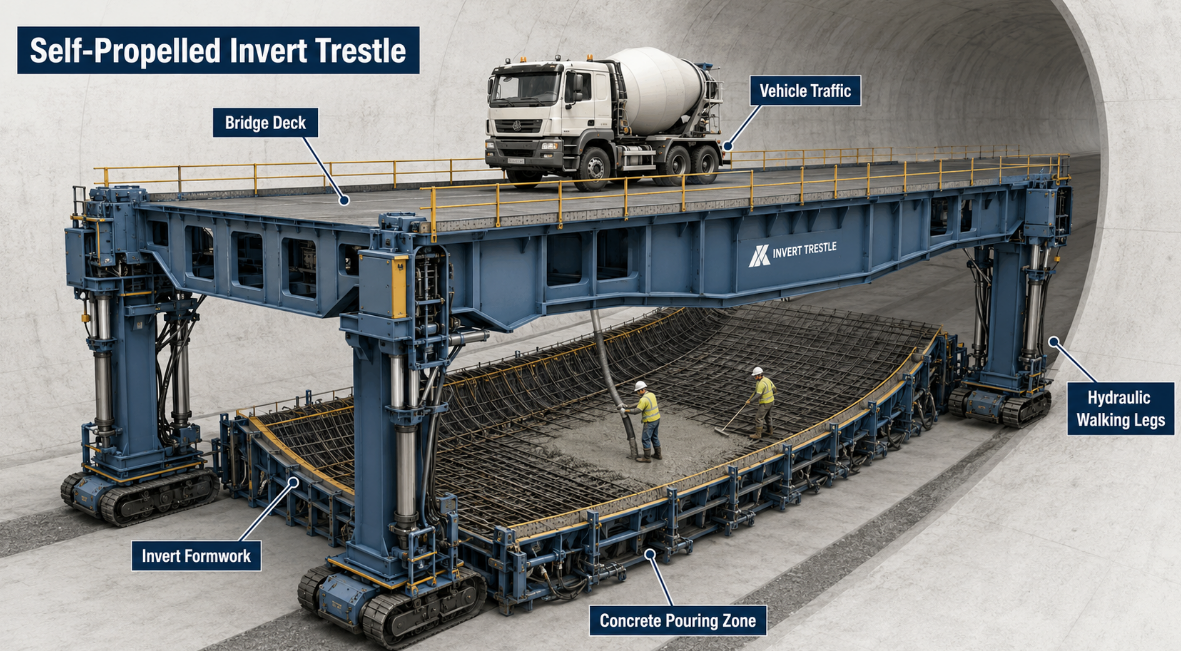

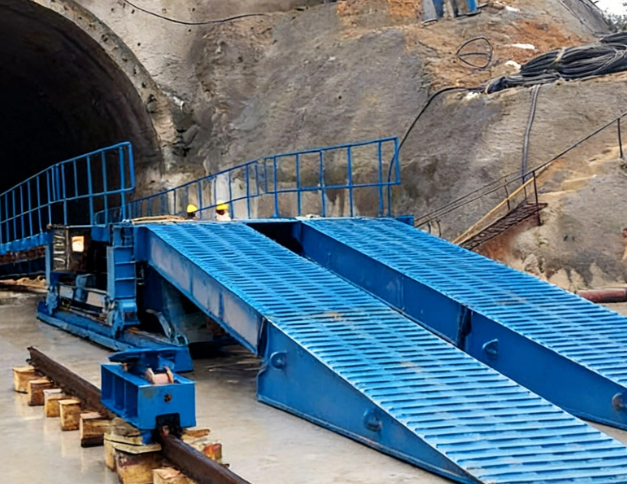

The Self-Propelled Invert Trestle is an automated hydraulic structural formwork system specifically engineered to bridge excavated tunnel sections while simultaneously supporting invert reinforcement placement, concrete pouring, and uninterrupted haulage vehicle traffic.

In tunnel construction, the invert arch serves as the foundational structural element, closing the lower ring of the tunnel lining to distribute ground pressure and prevent floor heave. Traditional construction approaches suffer from continuous traffic interruptions because concrete pouring equipment blocks muck cars, concrete transit mixers, and utility vehicles. The deployment of a heavy-duty Self-Propelled Invert Trestle solves this logistical conflict by creating an elevated bridge span above the active invert working zone. Vehicles drive directly over the robust bridge deck of the trestle while reinforcement assembly and invert concrete pouring proceed undisturbed underneath.

From a structural engineering standpoint, why is the Self-Propelled Invert Trestle designed with integrated hydraulic walking legs and modular steel templates? During field operations, client teams consistently express concern regarding equipment stability under asymmetric concrete pressure, setup transition speed, and structural deflection under heavy transport loads. To address these demands, modern system designs incorporate heavy-duty steel box girders, dual-circuit hydraulic cylinders, and high-rigidity curved formwork panels. European contractors, in particular, favor configurations with automated hydraulic leveling systems and wireless remote controls, which enhance operational safety and minimize manual labor requirements in hazardous tunnel faces.

The operational efficiency of the Self-Propelled Invert Trestle rests upon its ability to maintain rigid structural dimensions while subject to dynamic vehicle loads above and hydrostatic concrete pressure below. The integration of high-torque hydraulic motors or synchronized long-stroke cylinders enables smooth self-propulsion without external winches or cranes. This self-contained mobility drastically reduces cycle times, enabling tunneling teams to achieve consistent daily advance rates while adhering strictly to international quality and safety benchmarks.

Phase 1: Foundation Site Preparation and Rail Setup

Phase 1 requires total mucking of the excavated invert surface, precise survey line verification, and establishing a stable base line or temporary travel rail for the Self-Propelled Invert Trestle.

Before advancing any heavy hydraulic equipment into the invert zone, all blasted rock, loose muck, and standing water must be thoroughly cleared from the tunnel floor. Residual debris under the invert formwork compromises structural lining thickness and causes localized stress concentrations in the finished concrete base. Hydro-descaling or high-pressure air jetting is performed along the rock boundary to expose the solid geology. Surveying teams then map the tunnel axis line, cross-sectional profile, and grade elevation using total stations to establish reference benchmarks for the incoming Self-Propelled Invert Trestle installation.

Once foundation cleaning is validated, support tracks or reinforced bearing pads are laid along the left and right bench walls outside the invert excavation limits. These bearing points must sustain the combined dead weight of the Self-Propelled Invert Trestle and the live loading from fully loaded concrete transit mixers traveling over the bridge deck. Special attention must be paid to subgrade bearing capacity; weak soil zones require timber cribbing or precast concrete ballast plates to prevent dynamic settlement during vehicle transit.

Proper rail alignment is crucial for smooth equipment propulsion. Any lateral misalignment or vertical deviation in the temporary tracks induces mechanical binding in the hydraulic walking assemblies of the Self-Propelled Invert Trestle. The table below outlines the critical site preparation parameters and installation tolerances required prior to advancing the equipment.

Phase 2: Hydraulic Self-Propelled Advancement and Alignment

Phase 2 executes the motorized forward propulsion of the Self-Propelled Invert Trestle using coordinated hydraulic actuators to position the bridge structure over the newly excavated invert section.

With site preparation verified, the operational crew unlocks the longitudinal anchoring systems of the Self-Propelled Invert Trestle. The equipment utilizes a synchronized hydraulic step-walking mechanism or motorized wheel drives powered by an integrated electro-hydraulic power unit (HPU). Hydraulic pressure is delivered to double-acting cylinders that lift the main frame slightly, drive the walking shoes forward along the track, lower the frame onto the forward shoes, and retract the rear support legs in a continuous, smooth walking cycle.

During advancement, operators monitor system pressure and structural clearance continuously. The elevated deck of the Self-Propelled Invert Trestle maintains clearance above the invert excavation, allowing steel fixers below to install invert rebar, waterstops, and drainage channels while the frame moves overhead. This parallel task execution eliminates sequential delays that traditionally slow down tunnel construction cycles. Advanced laser alignment sensors attached to the front frame provide real-time spatial positioning feedback to the operator console.

Upon reaching the designated invert ring position, the hydraulic drive system is locked out via check valves and mechanical safety pins. Surveyors verify the spatial center line and elevation of the Self-Propelled Invert Trestle against primary tunnel control points. Micro-adjustments are performed through multi-axis hydraulic cylinder controls, ensuring the frame is positioned within tight millimeter-scale tolerances before formwork deployment begins.

Phase 3: Formwork Positioning, Hydraulic Extension, and Anchoring

Phase 3 involves extending the curved invert formwork templates using hydraulic rams, fine-tuning radius dimensions, and rigidly anchoring the assembly against floatation forces.

Once the primary trestle bridge is stabilized, the attached bottom and side formwork panels are lowered into position using vertical hydraulic cylinders. The curved templates of the custom engineered hydraulic invert formwork system expand outward toward the tunnel side walls, matching the exact cross-sectional radius of the structural design. Lateral hydraulic jacks press the formwork wings tightly against the pre-installed longitudinal waterstops and construction joint bulkheads.

Because freshly poured fluid concrete exerts immense hydrostatic uplift forces (buoyancy), securing the formwork down is a crucial engineering requirement. If the Self-Propelled Invert Trestle is insufficiently anchored, concrete will lift the template, creating severe step faults, lining thickness variations, and potential structural failure. High-strength turnbuckles, mechanical tie rods, and hydraulic hold-down clamps anchor the formwork directly to rock bolts previously installed in the tunnel invert bedrock.

Why do experienced tunneling contractors prioritize heavy mechanical screw locks over hydraulic holding pressure alone during concrete pouring? Hydraulic pressure can fluctuate due to fluid thermal expansion or valve seat seepage over hours of continuous operation. Mechanical screw collars on hydraulic cylinder rods provide a positive, unyielding mechanical stop that guarantees zero structural movement during high-rate concrete pumping. European and East Asian clients routinely insist on this redundant mechanical locking protocol to guarantee absolute geometric accuracy.

Phase 4: Concrete Placement, Vibration, and Structural Integration

Phase 4 encompasses the symmetrical placement of high-performance concrete into the invert cavity beneath the bridge structure, combined with systematic consolidation to prevent void formation.

Concrete delivery to the Self-Propelled Invert Trestle is conducted using slicklines fed by concrete pumps or direct discharge from transit mixers traversing the elevated bridge deck. Concrete must be deposited symmetrically from both sides of the center line in balanced layers not exceeding 300 mm to 500 mm in height. Asymmetric filling causes unbalanced lateral soil and concrete pressures that can displace the template assembly off its calibrated center axis.

Internal high-frequency vibrators or automated formwork-mounted electric vibrators are activated concurrently with concrete discharge. Consolidation removes entrapped air pockets, ensuring complete encapsulation of complex reinforcement grids and invert drain pipes. Special care is taken around the lowest invert arc section to prevent air entrapment beneath the closed formwork panels, which otherwise results in surface bug-holes and structural permeability issues.

During the entire pouring operation, transit vehicles continue to utilize the top deck of the Self-Propelled Invert Trestle to transport materials to the tunnel face. The structural bridge deck isolates the curing concrete below from dynamic vehicle shock loads through rubber damping pads mounted between the deck girders and support legs. The table below details the key concrete placement operational parameters.

Operation Tip (Concrete Pressure Control): Always maintain a dedicated operator monitoring hydraulic manifold pressure gauges and digital load cells on the vertical hold-down rods during concrete placement. If concrete pressure spikes exceed design limits due to rapid pumping, immediately reduce pump delivery speed and balance the concrete head across both side hatches of the Self-Propelled Invert Trestle.

Phase 5: Hydraulic Formwork Stripping and Structural Retraction

Phase 5 executes the systematic stripping of the invert formwork once concrete reaches compressive strength targets, retracting templates hydraulically clear of the cured concrete face.

Formwork stripping must not commence until field-cured test cylinders demonstrate that the invert concrete has attained a minimum compressive strength of 8.0 MPa to 10.0 MPa (typically 8 to 12 hours post-pour depending on mix design and accelerators). Premature stripping hazards surface spalling, edge cracking, and structural deformation under self-weight.

Once strength compliance is confirmed by quality engineers, mechanical lock collars on the hydraulic cylinders are backed off. Structural tie rods connecting the formwork to the invert bedrock are unscrewed and removed. The hydraulic control valves on the Self-Propelled Invert Trestle are actuated to apply positive retraction force, pulling the side wing formwork away from the vertical construction joints and lifting the bottom arch panels clear of the invert surface.

Specialized non-stick release agents applied prior to concrete placement ensure smooth separation without concrete adhesion. The retracted formwork modules are held securely in a compact travel profile inside the main frame of the Self-Propelled Invert Trestle. The elevated bridge frame remains fully operational, maintaining uninterrupted haulage traffic while preparation begins for advancing the assembly to the next construction ring.

Phase 6: Concrete Curing and Trestle Cycle Advancement

Phase 6 completes the cycle by establishing concrete curing protocols on the exposed invert while advancing the Self-Propelled Invert Trestle to initiate the next tunnel section.

Immediately following formwork retraction, curing membranes or automated water sprinkling systems are deployed across the freshly exposed invert concrete. Proper curing maintains internal hydration moisture, mitigating shrinkage cracking and ensuring the concrete achieves its full 28-day characteristic design strength. Curing tarpaulins are positioned over the invert section to protect it from dry air currents generated by tunnel ventilation fans.

Simultaneously, crew members inspect and clean the steel formwork panels of the Self-Propelled Invert Trestle. Residual concrete slurry is removed using high-pressure water blasting, and a fresh coat of high-performance chemical form release oil is applied across all contact surfaces. Hydraulic lines, structural welds, and walking gear are inspected in accordance with daily preventative maintenance checklists.

With maintenance verified, the track extensions are laid ahead, and the efficient self-propelled invert trestle bridge steps forward to repeat the operational sequence for the subsequent excavation ring. This continuous cycle enables tunneling projects to establish rapid, predictable operational tempos while maintaining top-tier structural quality.

Maintenance Tip (Hydraulic System Longevity): In harsh underground tunnel environments, dust and abrasive rock slurry accelerate seal wear in hydraulic cylinders. Ensure all piston rods on the Self-Propelled Invert Trestle are fitted with heavy-duty protective neoprene bellows, and flush hydraulic oil filters every 250 operating hours to prevent system contamination.

Technical Specifications and Performance Metrics

The structural performance of a Self-Propelled Invert Trestle is governed by rigorous mechanical design metrics, load ratings, and hydraulic power specifications.

Designing equipment for heavy civil tunneling requires balancing high structural stiffness against overall operational mass. Main longitudinal girders are typically fabricated from high-strength Q355B or Q460C structural steel box sections to withstand dynamic bending moments under 60-ton dump truck loadings without excessive deflection. Hydraulic systems operate at standard industrial pressures up to 21 MPa, utilizing proportional valves to ensure silky-smooth movement during alignment.

The table below provides a comprehensive engineering specification matrix typical of modern heavy-duty Self-Propelled Invert Trestle systems deployed in high-speed rail and highway tunnel projects.

Project Economics and Structural Advantages

Deploying a Self-Propelled Invert Trestle yields measurable economic returns by reducing site labor requirements, speeding up cycle times, and ensuring zero traffic downtime.

In conventional tunneling, invert placement represents a persistent operational bottleneck. Manual formwork setup requires large labor crews, manual chain hoists, and external crane assistance. Furthermore, every pour completely halts vehicle traffic into the tunnel heading, idling drill rigs and excavation crews at the face. By contrast, the elevated bridge superstructure of the Self-Propelled Invert Trestle maintains uninterrupted two-way or single-lane haulage, directly increasing total project tunneling efficiency.

1. Accelerated Cycle Times: Modern contractors achieve complete 12-meter invert pouring cycles in under 18 hours using a Self-Propelled Invert Trestle, compared to 36–48 hours with traditional modular formwork.

2. Labor Optimization: Automated hydraulic positioning reduces formwork crew size from 12 workers down to 3 or 4 operators, driving down field labor costs while significantly reducing exposure to hazardous tunnel invert zones.

3. Enhanced Concrete Surface Quality: High-rigidity steel templates eliminate formwork flexing, producing smooth, impermeable invert concrete surfaces that pass stringent client quality audits without costly grinding or manual patching.

4. Exceptional Safety Record: Eliminating mobile cranes and winches for formwork positioning dramatically lowers rigging incidents, crushed-limb hazards, and floor slips in wet invert conditions.

Maintenance Protocol and Field Safety Guidelines

Maintaining high operational availability of the Self-Propelled Invert Trestle requires strict execution of daily preventative maintenance routines and strict safety adherence.

Underground tunnel environments present brutal operating conditions characterized by airborne rock dust, ground water ingress, and heavy vibration. A rigorous preventative maintenance program protects electro-hydraulic components and extends structural fatigue life.

1. Daily Hydraulic Inspections: Prior to each advancement cycle, operators must verify hydraulic oil levels, check high-pressure hoses for abrasion or leaks, and test emergency shutdown switches across all control stations.

2. Structural Weld Audits: The intense cyclic loading caused by 60-ton vehicles crossing the bridge deck induces structural fatigue. Regularly inspect critical box girder welds, leg pin joints, and cylinder clevises using magnetic particle or ultrasonic non-destructive testing (NDT).

3. Formwork Cleaning Protocol: Immediately after stripping, concrete paste must be removed from formwork faces, hinges, and seal grooves. Built-up concrete distorts lining geometry and damages hydraulic cylinder wiper seals during retraction.

4. Electrical Enclosure Sealing: Ensure all control boxes maintain IP65 water/dust ingress protection. Moisture ingress into solenoid valve drivers or PLC modules causes intermittent signal failures during alignment.
