Common Issues and Solutions in T Beam Formwork Construction

T beam formwork construction common issues primarily stem from excessive formwork deflection, poor joint sealing, uneven release agent application, and inadequate vibration during concrete placement, which can be overcome by implementing rigid modular steel structural frames, high-precision machined tongue and groove joint connections, automated hydraulic stripping mechanisms, and systematic maintenance protocols.

At a Glance

Structural Deflection and Dimensional Misalignment

Structural deflection and dimensional misalignment in T beam formwork occur when dynamic lateral concrete hydrostatic pressures exceed the elastic bending resistance of the formwork panels, resulting in web bulging, flange height variations, and alignment deviations across long bridge spans.

When pouring deep structural elements such as bridge girders, the hydrostatic pressure exerted by self-consolidating or high-slump wet concrete creates massive outward force against the vertical web panels and overhanging top flange supports. If the structural rib spacing is overly wide or the steel plate thickness is insufficient, the T beam formwork panels flex outward under load. This elastic deflection creates permanent dimensional inaccuracies in the cured concrete element, leading to severe installation misalignment during girder launching or crane positioning on bridge piers. Furthermore, uneven tightening of tie rods and foundation settlement under the formwork shores further exacerbate cross-sectional variance along the longitudinal axis of the beam.

To eliminate structural deflection, modern industrial formwork design relies on finite element structural analysis to calculate exact stress distribution patterns during high-rate concrete placement. Heavy-duty external stiffeners, cold-formed structural channels, and high-tensile tie rod assemblies are integrated directly into the panel architecture to maintain strict structural tolerances under high concrete head pressures. By specifying high-yield structural steel and precision alignment pins, contractors can achieve perfectly straight web profiles and uniform flange dimensions across continuous multi-span bridge construction projects. Utilizing engineered heavy-duty steel T beam formwork solutions ensures that side panels remain completely rigid even during rapid, full-depth concrete vibration cycles.

European bridge engineers and global precast contractors consistently prioritize structural rigidity over initial equipment weight. In actual field feedback, client technical teams emphasize that even a minor web deviation of three millimeters can result in costly grinding or structural rejection by highway quality inspectors. This is why high-performance formwork architectures integrate heavy structural channel wales spaced closely along the vertical web zones where concrete pressure reaches its absolute peak during deep pour operations.

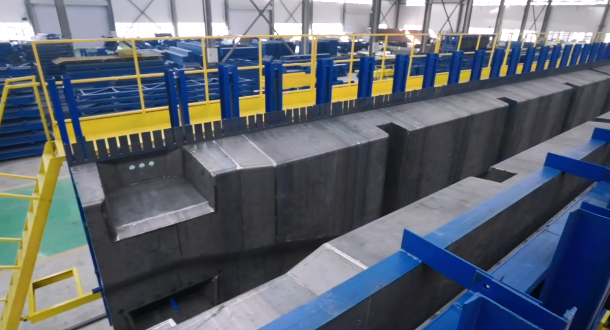

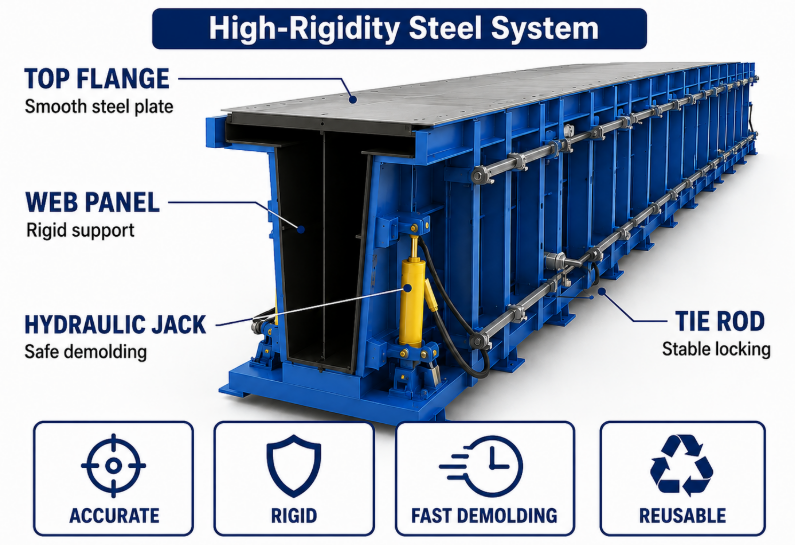

Working Principle: The structural stability of T beam formwork relies on a closed-loop force transfer system, where the horizontal hydrostatic pressure of wet concrete is absorbed by the internal face plate, transferred through vertical stiffening ribs to primary horizontal steel wales, and ultimately neutralized by high-tensile steel tie rods acting in pure tension.

Grout Leakage and Honeycombing at Formwork Joints

Grout leakage and structural honeycombing at formwork joints are caused by micro-gaps between adjacent panel segments that allow cement paste to escape during vibration, leaving exposed coarse aggregate pockets and honeycombed concrete surfaces.

Grout leakage, commonly referred to as slurry bleeding, is one of the most frequent defects in precast concrete T beam fabrication. When concrete is consolidated using high-frequency internal vibrators or external form vibrators, the liquid cement paste behaves like a low-viscosity fluid under hydraulic pressure. If the joint between adjacent T beam formwork panels is unsealed or misaligned due to worn connection keys, the cement paste forces its way through the seam. The loss of fine binder matrix leaves localized voids packed only with coarse stone aggregate, severely compromising the structural integrity, cover depth, and aesthetic finish of the T-beam.

Preventing grout leakage requires a dual strategy of mechanical precision and high-performance elastic sealing materials. Modern formwork manufacturing utilizes laser-cut flange edges and CNC-machined joint faces that achieve tight metal-to-metal tolerances during assembly. In addition, dedicated seal grooves are integrated along all longitudinal and transverse panel margins to house compressible, high-density EPDM rubber gaskets or closed-cell neoprene strips. When connection bolts or wedge clamps are tightened, these elastic gaskets compress fully into the groove, forming a pressure-tight barrier that prevents cement slurry escape even under intense high-frequency external consolidation.

In European market applications, top-tier infrastructure contractors demand quick-locking wedge clamps combined with continuous embedded rubber seals rather than flat bolted joints. Field experience indicates that traditional flat bolted connections require excessive labor time during assembly and frequently suffer from uneven torque, leading to localized joint gaps. By transitioning to precision-engineered quick-locking mechanisms and recessed gasket channels, jobsite assembly time is reduced by up to 40 percent while eliminating grout bleeding entirely.

Surface Imperfections, Bug Holes, and Demolding Damage

Surface imperfections, bug holes, and concrete spalling during demolding are caused by entrapped air bubbles at the formwork interface and excessive physical adhesion between cured concrete and steel face plates due to improper release agent application.

Bug holes, or surface bugholes, are small spherical voids created by air pockets and free water migrating toward the formwork face during concrete compaction. In T beam construction, the sloped underside of the top flange and the narrow vertical web are particularly prone to trapping air bubbles. If the formwork surface is rough, contaminated with rust, or coated with a viscous, low-grade release agent, these air pockets cannot escape upward. Furthermore, when the concrete cures, strong mechanical bonding can occur between the hydrated cement paste and the steel plate, leading to surface spalling, edge chipping, and concrete tear-out during formwork stripping.

Solving surface defects requires optimizing both the physical contact surface and the chemical release mechanism. High-grade T beam formwork panels undergo specialized surface treatments, including automated shot blasting, precision mechanical polishing, and protective anti-oxidation priming. The application of chemical release agents must be strictly controlled; solvent-free, water-based polymer emulsions or reactive vegetable-oil-based release agents should be applied in ultra-thin, uniform films using fine atomizing spray nozzles. Combined with optimized high-frequency vibration protocols that allow air bubbles to slide smoothly up the sloped formwork face, this ensures a smooth, glassy concrete finish that meets stringent architectural and structural standards. Choosing a high-precision durable steel T beam formwork system with factory-polished contact faces significantly reduces friction, allowing entrapped air to vent rapidly during consolidation.

Why do modern formwork designs favor specialized sloped web transitions? In technical discussions with leading precast plant managers, a key insight emerges: the transition angle between the vertical web and the overhanging flange is the most critical zone for air evacuation. Industrial designs incorporate a carefully calculated radius and draft angle at this corner, preventing air entrapment while facilitating effortless, non-destructive stripping during form removal operations.

Maintenance Tips: To preserve the pristine surface condition of steel T beam formwork, operators must clean all residual concrete slurry immediately after demolding using nylon or soft brass scrapers. Never use heavy iron hammers or hard steel chisels directly on the polished face plates, as microscopic scratches create mechanical anchors for concrete adhesion in subsequent pour cycles.

Thermal Deformations and Concrete Curing Cracks

Thermal deformations and curing cracks in T beams result from extreme temperature differentials between the hydrating concrete core and the exterior formwork surface, as well as uneven solar heating on exposed steel formwork panels.

Mass concrete hydration in deep T beams generates substantial exothermic heat, often raising the internal core temperature above 65 degrees Celsius. If the external steel T beam formwork is uninsulated and exposed to cold ambient weather, a steep thermal gradient develops across the cross-section of the beam. The outer concrete shell cools and contracts rapidly while the core remains hot and expanded, inducing tensile stresses that exceed the early-stage tensile strength of the concrete. This structural mismatch causes thermal surface cracking along the web and flange junctions. Conversely, direct solar radiation heating one side of steel formwork prior to pouring causes asymmetric thermal expansion, leading to bowing and camber distortion along the longitudinal axis.

Mitigating thermal cracking requires thermal management during both formwork setup and concrete curing. High-performance T beam formwork systems can be equipped with external thermal insulation layers, such as polyurethane foam panels or heavy thermal blankets attached to the exterior structural ribs. This insulation retains hydration heat, ensuring a gradual and uniform cooling rate across the entire T beam profile. Additionally, in automated precast facilities, integrated steam heating pipes or thermal fluid channels can be built into the formwork backing structure to provide controlled accelerated curing cycles, maintaining uniform temperatures and eliminating thermal shock when forms are stripped.

Modern precast engineering increasingly favors integrated thermal management over post-pour curing blankets. Field monitoring shows that European precast plants operating under tight production schedules utilize formwork systems with built-in thermal sensors and insulated backing panels. This setup allows real-time tracking of concrete maturity, enabling safe formwork stripping at maximum early strength without risking micro-cracking or thermal shock deformities.

Hydraulic and Mechanical Demolding Operational Failures

Hydraulic and mechanical demolding operational failures occur when rigid formwork sections bind against cured concrete during stripping, resulting in structural damage to beam flanges, bent formwork frames, and extended turn-around cycles.

Stripping deep, heavy T beam formwork manually is labor-intensive, hazardous, and prone to causing structural edge damage to fresh concrete elements. As concrete cures, it undergoes minor shrinkage around internal cores while expanding tightly against outer formwork corners. If side panels are pulled away unevenly using overhead cranes or mechanical crowbars, localized point loads develop against the thin overhanging flanges of the T-beam. This uncontrolled mechanical prying frequently chips the delicate top edges of the beam or warps the steel formwork alignment frames, requiring expensive patch repairs and realignment maintenance.

To eliminate demolding damage and streamline production efficiency, modern T beam formwork systems feature integrated hydraulic self-stripping mechanisms. Double-acting hydraulic cylinders are mounted directly between the main formwork traveler frame and the side panel structures. Upon command from a centralized hydraulic control unit, these cylinders exert synchronized, uniform pulling forces that retract the side panels horizontally away from the concrete face at a controlled speed. Furthermore, precision hinge points and eccentric roller tracks allow the side forms to drop downward and slide outward simultaneously, clearing the overhanging T beam flange without any physical contact or binding.

Advanced industrial designs feature a built-in draft angle of 3 to 5 degrees along all vertical relief faces. When evaluating equipment, precast plant managers consistently highlight that self-stripping hydraulic mechanisms reduce demolding crew requirements from six workers down to two, while cutting formwork cycle times by more than 50 percent. Incorporating an advanced hydraulic T beam formwork machine transforms precast beam manufacturing into a safe, repeatable, and highly automated industrial process.

Inspection, Preventive Maintenance, and Storage Protocols

Systematic inspection, preventive maintenance, and sheltered storage protocols prevent structural fatigue, corrosion degradation, and surface damage, ensuring long-term dimensional stability and multi-hundred cycle reusability of T beam formwork.

Industrial T beam formwork represents a major capital investment for precast operations and infrastructure projects. Continuous exposure to moisture, alkaline cement slurry, high vibration, and heavy lifting forces subjects the structural steel frame to mechanical fatigue and surface corrosion. Without rigorous maintenance, concrete slurry accumulates in bolt threads, sealing grooves, and hinge joints, leading to mechanical binding, loss of dimensional precision, and premature equipment degradation. Furthermore, storing steel formwork panels outdoors on uneven ground leads to structural warping under their own self-weight.

A professional maintenance regimen begins immediately following demolding. Residual concrete paste must be removed using high-pressure water washing or non-destructive scraping techniques. After cleaning, all steel face plates must be inspected for flatness using precision straightedges and coated with a light film of protective anti-corrosion oil. Mechanical moving parts, including hydraulic cylinder rods, hinge pins, alignment jacks, and turnbuckles, require regular lubrication with high-tack industrial grease. During storage, formwork modules must be supported on level timber dunnage in a sheltered warehouse or covered yard, stacked evenly to prevent frame twisting and joint distortion.

In conclusion, successfully overcoming common issues in T beam formwork construction requires a comprehensive approach that combines robust structural design, precision joint sealing, disciplined site practices, and automated demolding technology. By addressing the root causes of formwork deflection, grout leakage, surface air voids, thermal cracking, and mechanical binding, contractors can consistently produce high-performance concrete T beams that meet the most demanding engineering standards for global transport infrastructure.
