Beam Formwork Installation Sequence and Technical Points

The T beam formwork installation sequence requires a rigorous step-by-step structural progression starting from foundational survey alignment and falsework shoring, followed by soffit T beam formwork positioning, side T beam formwork panel erection, internal tie-rod placement, mechanical alignment, and pre-pour structural lock; adhering strictly to technical parameters such as L/400 deflection limits, lateral tie-rod load capacities exceeding 80 kN, high-grade joint sealing, and calculated stripping intervals is essential to guarantee concrete structural integrity and dimensional compliance.

At a Glance

Installation Sequence of Beam Formwork

The installation sequence of T beam formwork follows a mandatory linear engineering process consisting of precise survey benchmarking, falsework shoring setup, soffit T beam formwork positioning, side T beam formwork panel erection, internal tie-rod and waler securing, and final laser alignment verification before reinforcement placement and concrete casting.

Execution of T beam formwork on site requires meticulous planning to handle the substantial dead load of fresh concrete alongside dynamic construction loads. In our engineering practice, we divide the T beam formwork installation sequence into clear, interdependent phases to eliminate cumulative dimensional errors. The workflow begins with high-precision total station surveying to map out the longitudinal beam axis, elevation benchmarks, and support locations on the underlying slab or foundation piers. Any discrepancy established at this base stage will compound vertically, causing serious misalignment in column-to-beam connections or precast girder seating. Once axis lines are established, high-capacity falsework shoring towers or heavy-duty steel props are erected with base plates set on fully compacted ground or structural footings, ensuring zero foundation settlement during the pour.

Following shoring stabilization, the bottom soffit T beam formwork is installed. The soffit form serves as the primary vertical load-bearing surface for the concrete weight. For long-span bridge girders or heavy building beams, steel or high-grade marine plywood soffit panels are placed upon primary and secondary timber or steel joists. Pre-calculated upward camber is intentionally introduced into the soffit form at this stage to offset the predictable elastic deflection of the falsework and T beam formwork under the dead weight of fluid concrete. In high-span applications involving specialized precast profiles, selecting a specialized structural heavy duty T beam formwork system ensures that the soffit and side form connections remain perfectly rigid under intense vibratory loads while enabling rapid mechanical assembly.

Once the soffit form is secured and checked for level, the reinforcement steel cage is lowered into place, or side T beam formwork erection commences depending on whether the T beam formwork is designed as an open-top box or a modular closed assembly. Side T beam formwork panels are raised into position and temporarily braced with adjustable inclined steel push-pull props. Double steel channel walers are mounted horizontally across the outer ribs of the side forms to distribute localized stresses evenly. Heavy-duty tie rods encased in PVC sleeve conduits are inserted through aligned panel holes, secured with cast-iron wing nuts, and torqued to specified clamping values. The final step of the T beam formwork installation sequence involves rigorous multi-axis verification using digital laser levels, confirming that width, depth, vertical plumbness, and diagonal squareness meet structural tolerance limits prior to signing off the pre-pour inspection safety sheet.

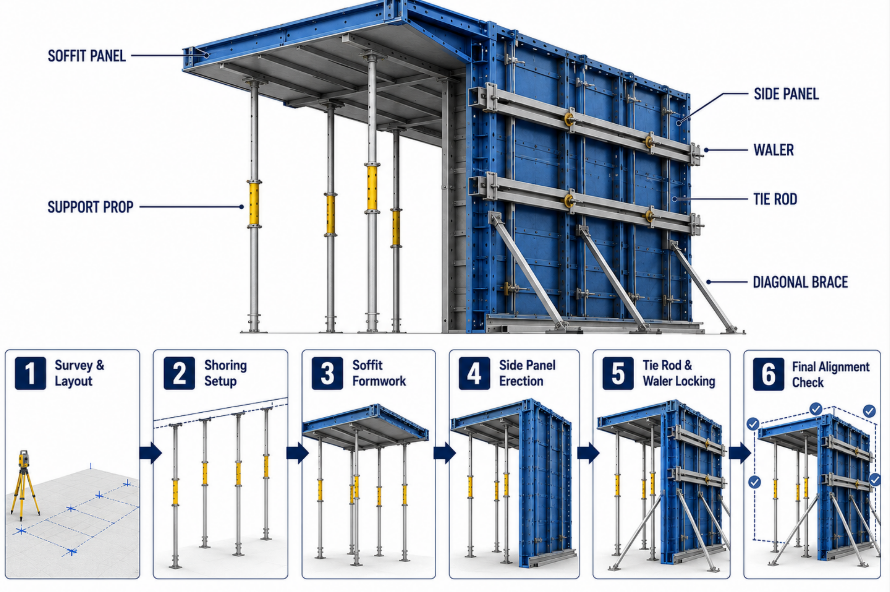

To systematically manage field execution, site supervisors must enforce the following ordered sequence of operations:

1. Surveying and Layout Marking: Establish control points, beam centerline, and elevation marks using optical or digital total stations.

2. Shoring and Substructure Assembly: Position adjustable base jacks, erect heavy-duty shoring frames, and secure cross-bracing for lateral stability.

3. Soffit Formwork Installation: Lay primary walers, secondary joists, and soffit panels; adjust base and top jacks to incorporate required mid-span camber.

4. Reinforcement Placement and Side Form Erection: Lower rebar cages onto plastic spacers, then position lateral T beam formwork panels and fix temporary push-pull diagonal braces.

5. Waler and Tie-Rod System Locking: Install horizontal steel walers, insert high-tensile tie rods through PVC sleeves, and tighten wing nuts to exact torque specs.

6. Final Geometry and Alignment Calibration: Verify plumb line, overall beam depth, top flange alignment, and joint tightness before authorizing concrete placement.

Technical Points to Consider for Beam Formwork

Critical technical points in T beam formwork engineering include strict compliance with maximum allowable deflection thresholds, precise calculation of fresh concrete hydrostatic pressure, integration of pre-calculated upward camber, implementation of leak-proof joint seals, and precise tie-rod stress distribution.

When engineering T beam formwork, structural safety and serviceability heavily depend on understanding fluid concrete dynamics. Freshly poured concrete behaves as a dense fluid that exerts severe hydrostatic pressure on vertical side forms until initial set occurs. The magnitude of this lateral pressure depends directly on the concrete pouring rate (meters per hour), concrete temperature, cement hydration chemistry, slump, and compaction vibration depth. Our engineering calculations require side T beam formwork panels and waler systems to withstand lateral pressures frequently exceeding 60 to 80 kPa in deep beams. Failure to accurately compute these loads can lead to catastrophic T beam formwork bulging, panel seam rupture, or total shoring collapse during internal high-frequency immersion vibration.

Deflection control represents another critical technical parameter. While structural elements are designed for long-term service loads, the temporary T beam formwork structure itself must not flex beyond strict visual and functional tolerances. Industry standards generally mandate that beam soffit T beam formwork deflection under full dead load plus construction live load must not exceed L/400 (where L is the span length between shoring supports) or a maximum of 3 mm to 5 mm. Excessive T beam formwork deflection creates unsightly sag on finished concrete surfaces and distorts rebar concrete cover, compromising long-term durability against environmental carbonation and chloride ingress. In long-span bridge construction, applying high-rigidity modular steel systems such as engineered modular steel T beam formwork modules allows contractors to maintain strict deflection control under heavy concrete loads without adding excessive self-weight to the falsework.

Furthermore, joint integrity and slurry prevention demand meticulous field attention. When fresh concrete is vibrated, water and fine cement mortar tend to escape through micro-gaps between T beam formwork panels, a phenomenon known as grout leakage. Grout leakage creates honeycombing, sand streaks, and weak structural pockets along beam corners and bottom edges. To achieve flawless concrete surface finishes and prevent structural honeycombing, high-density closed-cell EPDM or EVA foam rubber gaskets must be installed between all panel seams, especially at the critical soffit-to-side-panel junction. Additionally, T beam formwork tie-rod sleeve penetrations must be fitted with conical PVC water-stop plugs to prevent moisture pathways across the beam cross-section.

Engineering Tip - Hydraulic Pressure & Vibration Control: Always calculate maximum pour rates based on concrete temperature and retardation characteristics. When compacting concrete with internal poker vibrators, ensure the vibrator head penetrates into the previously placed layer by no more than 100 mm to 150 mm; over-vibrating deep layers increases local hydrostatic head beyond designed panel tie-rod capacities, leading to joint separation and dimensional distortion.

Key technical design considerations are structured into the following operational pillars:

1. Hydrostatic and Dynamic Load Factoring: Account for fresh concrete density (24 to 25 kN/m³), impact from bucket dropping, and localized vibration pressure peaks.

2. Camber Provisioning: Apply upward deflection compensation in soffits for spans exceeding 4 meters according to the formula C = L / 500 to L / 300.

3. Sealing and Edge Integrity: Integrate continuous rubber compression gaskets along panel perimeters and chamfer strips at 90-degree corners to prevent slurry loss and spalling.

4. Tie-Rod Structural Rating: Use cold-rolled high-tensile steel tie rods rated for minimum yield strengths of 150 kN to prevent lateral panel spread.

Structural Components and Specifications of T Beam Formwork Systems

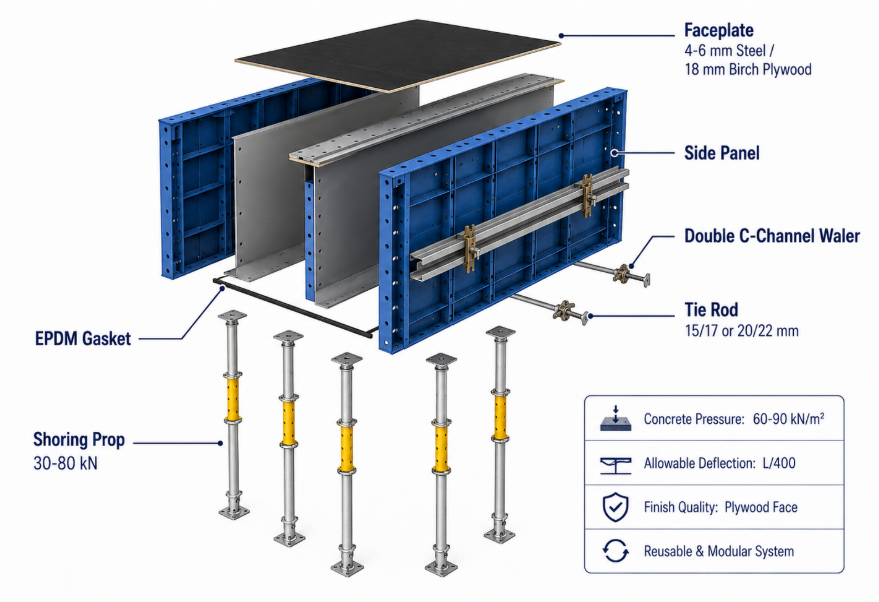

T beam formwork systems consist of high-strength structural steel or aluminum framework, heavy-duty face panels, adjustable steel walers, high-tensile tie rods, specialized top flange clamps, and inclined push-pull alignment props engineered to handle extreme industrial pouring conditions.

In modern infrastructure projects—such as highway viaducts, elevated light rail corridors, and large-span industrial facilities—T beams are widely specified due to their superior strength-to-weight ratio and efficient structural depth. However, casting precast or cast-in-place T beams presents unique geometric challenges due to the wide top flange, narrow vertical web, and tapered bottom bulb or soffit. The T beam formwork system must accommodate steep dimensional transitions while allowing rapid stripping without damaging the freshly cured concrete edges. In our technical evaluation, steel-framed T beam formwork offering modular panel interconnectivity provides the highest operational efficiency and dimensional stability over hundreds of re-use cycles.

The structural framework relies on heavy-duty cold-formed or hot-rolled steel profile stiffeners welded behind high-grade Q235 or Q345 steel faceplates (typically 4 mm to 6 mm thick) or high-density Birch plywood faces. Steel faceplates provide exceptional resistance to mechanical wear, abrasion from coarse aggregates, and impact from rebar installation. The side forms are backed by primary vertical stiffeners and secondary horizontal walers made of twin C-channel profiles. Specialized top flange form supports are hinged or adjustable to allow exact slope settings for roadway cross-falls and drainage gradients. Utilizing a standardized precision engineered T beam formwork solution optimizes stripping cycle times through integrated turnbuckles and quick-release wedge pins, reducing crane lift times and site labor requirements substantially.

The table below presents standardized technical specifications and structural component parameters typically specified for high-performance industrial T beam formwork systems:

Why do we design our T beam formwork systems with heavy modular steel panels rather than timber framing alone? From an industrial manufacturing standpoint, timber formwork suffers from moisture absorption, warping, rapid surface degradation, and labor-intensive site cutting. In contrast, engineered steel T beam systems offer uniform thermal expansion, absolute geometric consistency, and operational lifespans exceeding 200 to 300 pour cycles. European and international contractors consistently favor modular T beam formwork systems equipped with integrated worker platforms, handrails, and self-cleaning mechanical jack screws that streamline site safety compliance while drastically lowering total cost per pour.

Stripping Protocols, Maintenance, and Quality Control

T beam formwork stripping protocols require strict verification of compressive concrete strength before panel removal, systematically followed by mechanical prop releasing, side panel retraction, thorough surface cleaning, high-performance release agent coating, and organized dry storage.

Stripping or striking T beam formwork represents a critical structural transition phase where the load of the hardening concrete element is transferred from the temporary support system to the beam itself. Premature T beam formwork stripping when concrete has not attained adequate compressive strength leads to deflection cracking, edge spalling, creep deformation, or catastrophic structural collapse. Side forms—which bear no vertical dead loads—can typically be struck once concrete achieves a compressive strength of 2.5 MPa to 5.0 MPa (often reached within 12 to 24 hours depending on ambient temperature and cement type). However, bottom soffit T beam formwork and supporting shoring props must remain fully intact until field-cured test cubes demonstrate that the concrete has reached at least 70% to 80% of its specified 28-day characteristic strength.

The striking process must be executed logically and gently to prevent mechanical damage to both the cured concrete and the T beam formwork hardware. Striking begins by backing off the turnbuckles on diagonal push-pull props and loosening the wing nuts on lower tie rods. Side T beam formwork panels are moved away from the concrete face using integrated stripping wedges or mechanical jack mechanisms; crowbars or heavy hammers must never be wedged directly between the concrete surface and the panel face, as this destroys sharp chamfer edges and damages protective faceplate coatings. Soffit shoring props are lowered systematically from mid-span outward toward the supports to allow smooth, stress-free load redistribution within the concrete beam.

Immediately following panel removal, a rigorous T beam formwork maintenance routine must be enforced to preserve operational lifespans. Residual concrete slurry and mortar film adhering to panel faces must be scraped clean using plastic or soft steel scrapers, followed by high-pressure water blasting. Before storing or re-erecting panels, a uniform layer of chemical release agent (form oil or emulsified bio-degradable oil) must be applied across faceplates. Proper release agents minimize concrete adhesion, protect steel against atmospheric corrosion, and ensure smooth, stain-free finishes on subsequent pours.

Maintenance & Storage Standard Operating Procedure: Inspect tie rods for thread stripping and walers for permanent bending after every 5 pour cycles. Store T beam formwork panels vertically on raised timber runners in well-ventilated, covered storage areas to prevent ground contact, moisture accumulation, and steel oxidation.

To maximize equipment ROI and maintain site safety, implement these core operational guidelines:

1. Concrete Strength Verification: Conduct non-destructive rebound hammer testing or crush field-cured cylinders prior to releasing soffit falsework.

2. Controlled Mechanical Stripping: Use built-in stripping jacks and turnbuckles; avoid forceful impact on concrete corners and flange tips.

3. Immediate Surface Cleaning and Oiling: Remove cement paste immediately after striking and apply high-grade release agents evenly via spray guns.

4. Component Quality Inspection: Continuously inspect welds, panel flatness, tie-rod threads, and sealing rubber strips before approving T beam formwork panels for the next casting cycle.

In conclusion, mastering the T beam formwork installation sequence demands a thorough understanding of structural engineering principles, precise geometric layout, rigorous load calculation, and disciplined field maintenance. By implementing high-rigidity modular steel T beam formwork systems, enforcing strict tie-rod and sealing standards, and strictly adhering to calculated stripping schedules, construction teams can consistently achieve superior concrete surface finishes, perfect dimensional accuracy, and optimal project profitability across challenging civil engineering applications.
