Cantilever Bridge Mechanism Explained: How It Works, Parts, Moment-Balance Diagram and Uses

A cantilever bridge works by utilizing structures that project horizontally into space, supported at only one end, balancing tensile and compressive forces through a secure counterweight or anchor arm system to carry heavy loads across long spans. This balanced-cantilever approach ensures that the structural equilibrium is maintained throughout its service life, transferring the immense dead load of the bridge deck and the live load of traffic directly into deep, foundational piers.

Understanding the mechanics, load distribution, and component design of these systems is essential for modern infrastructure planners and heavy equipment engineers. The following comprehensive guide provides an in-depth analysis of the cantilever bridge mechanism, its structural components, mathematical balancing principles, and practical industrial applications. Furthermore, we will explore how advanced automated construction technologies are currently revolutionizing the efficiency and safety of erecting these monumental structures.

Section and Summary Overview

Inside the Cantilever Bridge

The internal mechanics of a cantilever bridge rely on a strict equilibrium between tensile forces pulling along the top chords and compressive forces pushing through the bottom chords, all anchored firmly by massive piers and counterweights. This internal structural network prevents the projecting arms from rotating or collapsing under their own immense weight, ensuring that every unit of force applied to the bridge is safely transferred down into the earth through rigid foundational structures.

Structural Flow of a Cantilever Bridge System

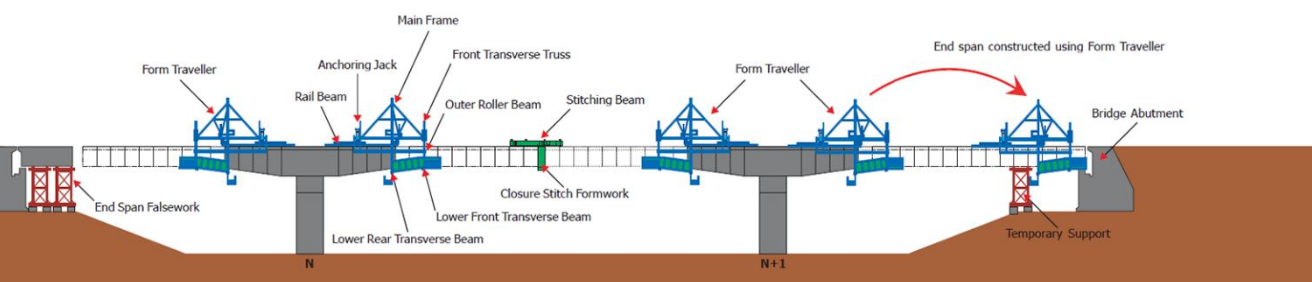

To fully dissect the inside of a cantilever bridge, one must examine its distinct structural zones. The system typically consists of three primary sections: the anchor arm, the cantilever arm, and the suspended span. The anchor arm extends from the main river pier backward to a secure land-based abutment, serving as the essential counterweight. The cantilever arm projects out from the pier into the open space that needs to be crossed. In many large-scale designs, two cantilever arms extending from opposite sides do not meet directly in the middle; instead, they support a shorter, lightweight suspended span between them. This three-part configuration permits controlled thermal expansion and localized structural flexing without risking a catastrophic, system-wide failure.

The distribution of mechanical stresses within this framework is highly specialized and opposite to that of a simple beam bridge. In a standard bridge supported at both ends, the top of the beam experiences compression while the bottom experiences tension. In a cantilever arm, this dynamic is completely inverted. The upper members, or top chords, are subjected to extreme tensile forces as gravity pulls the free end downward, stretching the material. Conversely, the lower members, or bottom chords, are driven into intense compression as they push against the base of the support pier. Managing these localized forces requires highly precise construction engineering and heavy duty industrial formwork to ensure the structural concrete or steel geometry is perfectly formed.

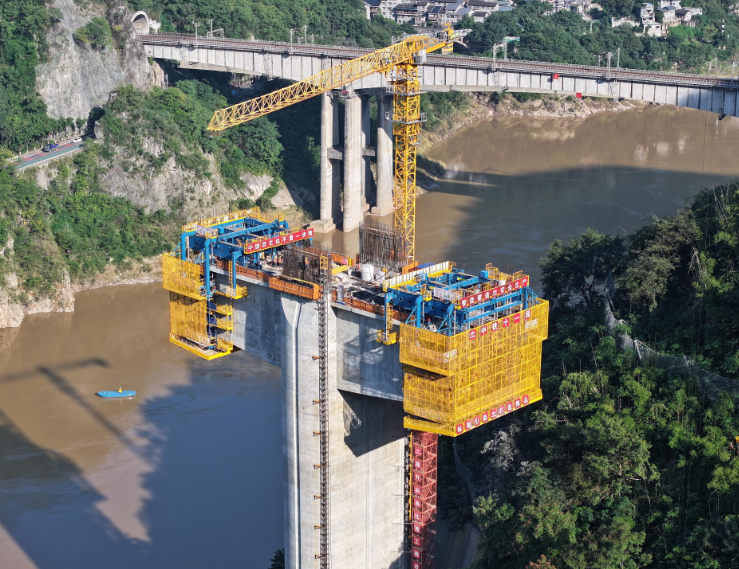

Modern construction of these massive concrete sections relies heavily on advanced segmental scaffolding systems. To optimize this process, specialized infrastructure developers utilize an Intelligent Cantilever Bridge Builder to cast or position box girder segments sequentially out from the pier. This advanced structural machine utilizes an integrated Safety & Intelligent Monitoring platform to track real-time stress values, preventing angular displacement or structural overloading during the high-risk cantilever execution phase.

Primary Structural Components of a Cantilever Bridge

1. Main Supporting Piers: The vertical towers, constructed from heavily reinforced concrete or structural steel, that bear the entire vertical dead and live load of the bridge system.

2. Anchor Arms: The structural sections extending behind the main piers to a fixed, heavy abutment block, preventing the forward cantilever arms from overturning.

3. Cantilever Arms: The rigid structural beams that project outward from the main piers into the open span, designed to support their own weight and a portion of the central deck.

4. Suspended Spans: The central, independent bridge segments that rest upon the tips of opposing cantilever arms, allowing for material expansion and flexible load adjustment.

5. Bearings and Pins: Heavy-duty mechanical joints placed at the connection points between cantilever arms and suspended spans to facilitate microscopic movements caused by temperature variations.

Real-World Applications of the Cantilever Bridge

Real-world applications of cantilever bridges span across deep river channels, dense urban highway interchanges, and mountainous gorges where installing intermediate ground supports is physically or economically impossible. This specific engineering design allows cities, countries, and industrial logistics networks to establish critical transportation links over highly challenging geographical barriers without disrupting navigation channels below.

The primary advantage of the cantilever design is observed during its construction phase. Because the bridge arms extend outward into space segment by segment from a fixed pier, there is no need for temporary falsework or support scaffolding in the space below. This makes cantilever bridges the premier choice for spanning major commercial shipping lanes, where blocking vessel traffic would result in severe economic consequences. By keeping the waterway completely clear during construction, maritime trade continues uninterrupted while thousands of tons of structural concrete and steel are assembled overhead.

Furthermore, cantilever configurations are highly favored in deep valleys, mountainous terrains, or areas with unstable riverbeds. In these environments, pouring concrete foundations into the ground at regular intervals is either engineeringly impossible or excessively costly. By leveraging long-span cantilever mechanisms, engineers can position massive piers on stable bedrock hundreds of meters apart, bypassing the hazardous terrain entirely. This structural capability is vital for high-speed rail networks and multi-lane interstate highways that require straight, level trajectories through irregular geographical landscapes.

Executing these complex engineering designs over volatile environments requires high-precision equipment capable of operating at extreme heights. The deployment of a specialized Intelligent Cantilever Bridge Builder is standard practice for modern high-speed rail and highway projects. These systems incorporate an Automatic Synchronous Traveling mechanism, allowing the formwork carriage to advance smoothly to the next segment without inducing unbalanced dynamic shocks to the cured concrete structure.

Key Engineering Environments for Cantilever Designs

1. Navigable Maritime Shipping Channels: Used where vertical and horizontal clearance must be maintained constantly to prevent disruptions to commercial container ships and naval vessels.

2. Deep Mountain Gorges and Canyons: Applied where the extreme depth or velocity of water makes the installation of intermediate vertical piers structurally unfeasible.

3. Complex Urban Highway Overpasses: Implemented in dense metropolitan areas where existing roads, light rails, or underground utilities prevent the placement of ground-level support columns.

4. Long-Span High-Speed Railway Links: Chosen for railway infrastructure demanding exceptionally low structural deflection rates and high rigid stability under heavy, moving dynamic train loads.

The Formula Behind the Cantilever Bridge

The mathematical formula governing a cantilever bridge revolves around static equilibrium, requiring that the sum of all vertical forces and the sum of all rotational moments around any given support pier equal exactly zero. This ensures that the rotational bending moment created by the projecting arm is perfectly balanced by the counter-rotational moment of the anchored arm, keeping the bridge completely static under all loading conditions.

Rotational Moment Balance Flow

To analyze the structural physics of a cantilever, we examine a simplified structural beam model. For a basic cantilever arm projecting a distance from a fixed pier, carrying a point load (such as a heavy truck) at its outermost tip, the bending moment at the face of the pier is calculated by multiplying the force of the load by the distance from the pier. When the bridge must support a uniformly distributed load along its entire length, representing the dead weight of the concrete box girders, the maximum bending moment at the support pier increases exponentially relative to the length of the span.

These principles demonstrate that as the length of the projecting arm increases, the internal bending stresses at the pier root scale dramatically. To withstand these immense forces, the depth of the bridge girder is constructed to be significantly thicker at the pier connection and tapers down gracefully toward the tip of the arm, minimizing dead weight while maximizing structural resistance.

In a complete balanced-cantilever system, the overturning moment produced by the cantilever arm must be neutralized by the resisting moment of the anchor arm. Engineers design the system to satisfy the fundamental law of static mechanics where the total net moment must equal zero. To maintain this delicate balance during the structural assembly phase, segments must be added symmetrically to both sides of the pier. Any significant weight deviation can cause hazardous torsional stresses at the pier base. To mitigate this risk, contractors implement an industrial Intelligent Cantilever Bridge Builder equipped with a highly accurate Precision Positioning system. This system ensures that prefabricated components or liquid concrete pours are aligned with millimeter precision, maintaining perfect equilibrium across the structural axis.

Furthermore, these modern construction systems feature a rugged chassis engineered for Heavy Load Bearing capacity. This ensures that the massive weight of the concrete segments, casting formwork, and onboard hydraulic equipment is distributed evenly across the cured bridge deck, preventing localized concrete cracking or structural failure.

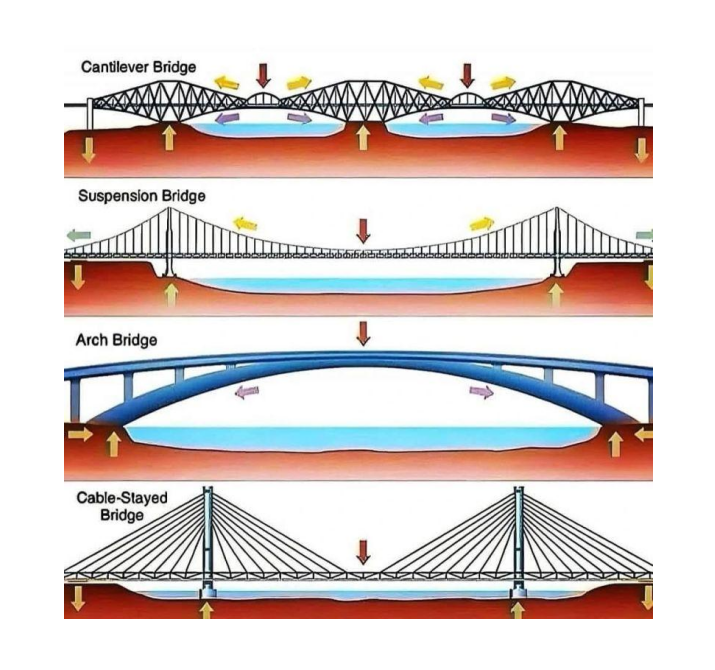

Structural Performance Comparison: Bridge Types

Technical Summary of Cantilever Systems

The cantilever bridge remains a foundational pillar of global civil engineering, successfully balancing the rigid laws of structural physics with the creative demands of modern transport planning. By inverting traditional beam mechanics—placing tension along the upper chords and compression along the lower chords—this methodology allows engineers to push massive structures out over deep waters, treacherous terrains, and active transit corridors without relying on temporary ground-level falsework.

As modern infrastructure projects scale in complexity and face increasingly tight construction schedules, the integration of automated structural machinery has become essential. Utilizing an Intelligent Cantilever Bridge Builder allows construction companies to execute complex balanced-cantilever designs with unprecedented levels of control and safety. Through advanced features such as Intelligent Lifting, automatic tracking, and real-time structural monitoring, these systems reduce human error and speed up assembly cycles. Ultimately, combining proven classical mechanical principles with modern automated equipment ensures that the next generation of cantilever bridges will be built stronger, faster, and safer than ever before.
