Modern infrastructure demands innovative engineering solutions to span deep valleys, wide rivers, and busy navigation channels without disrupting the environment or traffic below. The balanced cantilever construction method has emerged as a premier technique for long-span concrete box girder bridges, offering exceptional structural efficiency and design flexibility. By erecting the bridge superstructure outward from a central pier in symmetrical segments, this method eliminates the need for extensive temporary scaffolding or falsework on the ground.
As bridge designs push the boundaries of span length and segment weight, traditional crane-based lifting methods often encounter strict physical and economic limitations. This is where specialized heavy lifting technology, such as the strand jack system combined with an Intelligent Cantilever Bridge Builder, becomes indispensable. Integrating precise hydraulic lifting capabilities directly into the segment assembly line ensures that massive precast or cast-in-place sections are handled with unmatched structural stability and predictable control.
A strand jack facilitates balanced cantilever bridge construction by providing a high-capacity, compact, and precision-controlled hydraulic lifting solution that can easily hoist massive concrete or steel bridge segments directly into place from barges or ground transport, maintaining perfect structural equilibrium across the pier.
The following comprehensive guide explores the intersection of balanced cantilever engineering principles and advanced segment deployment technologies. It details how the strategic use of strand jacking machinery, automated formwork travelers, and continuous structural monitoring systems addresses traditional construction bottlenecks. By analyzing historical milestones, mechanical foundations, and practical operational parameters, this text provides a definitive technical reference for modern long-span bridge engineering.
Section | Summary |
Cantilever Bridge Facts: A Comprehensive Guide to Cantilever Bridge Facts | An introductory overview defining the core identity of cantilever bridge engineering, its structural relevance, and how integrated jacking systems optimize project execution. |
Cantilever Bridge Facts: An Introduction | A deep dive into the historical origins, fundamental geometry, and basic mechanical configuration of cantilevered spans in civil engineering history. |
Understanding the Principles of Cantilever Bridge Facts | An analytical breakdown of stress distribution, moment forces, and the critical importance of maintaining strict symmetry during balanced segment erection. |
Construction Techniques and Cantilever Bridge Facts in Practice | A practical examination of cast-in-place versus precast segment assembly methodologies using automated formwork systems and high-capacity hoisting gear. |
Notable Cantilever Bridges: Cantilever Bridge Facts in Real Life | A technical case study review of iconic structural marvels worldwide that demonstrate the longevity, capacity, and design versatility of the cantilever principle. |
Engineering Challenges and Advantages of Cantilever Bridge Facts | A comparative assessment highlighting the distinct engineering benefits, inherent risks like geometric deflection, and mitigation strategies used in the field. |
Cantilever Bridge Facts in Modern Infrastructure | A forward-looking analysis of digital integration, advanced materials, smart hydraulic lifting networks, and automated alignment control in contemporary bridge building. |
A comprehensive evaluation of cantilever bridge structures reveals that their success depends on the flawless management of structural balance and load transfer during every phase of sequential segment erection.
The execution of long-span bridge projects requires an intricate balance between structural engineering principles and advanced field construction machinery. The balanced cantilever method is specifically favored for spans where intermediate ground support is either physically impossible or financially prohibitive, such as deep shipping channels, dense urban highway corridors, or ecologically sensitive ravines. In these scenarios, the bridge piers act as the primary structural anchors from which the superstructure grows outward, segment by segment, like opposing wings.

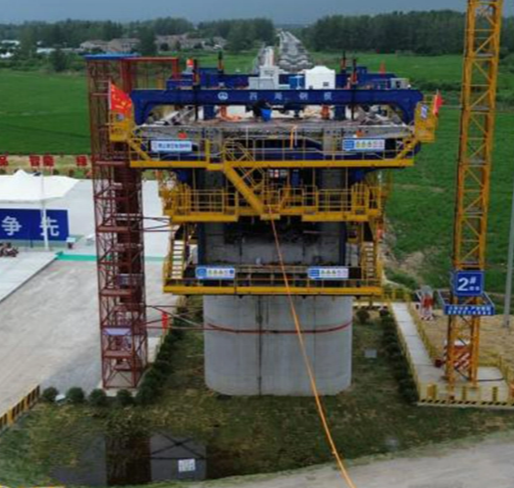

To manage the massive forces generated during this incremental growth, engineers rely on sophisticated lifting systems. Utilizing a heavy-duty Intelligent Cantilever Bridge Builder allows construction crews to execute highly controlled segment deployments while minimizing structural stress on the permanent pier foundations. The integration of strand jacks within this framework provides the high-capacity, linear lifting force required to lift precast concrete box segments directly from transport vessels below, converting a complex logistical challenge into a highly repeatable mechanical process.
Furthermore, analyzing the data surrounding modern bridge construction reveals a clear trend toward automation and real-time monitoring. By utilizing centralized hydraulic control systems, engineers can synchronize multiple lifting points down to the millimeter. This level of precise intervention prevents the development of catastrophic asymmetric moment forces on the pier, ensuring that as each pair of segments is fixed into place, the entire system remains safely within its structural design envelope.

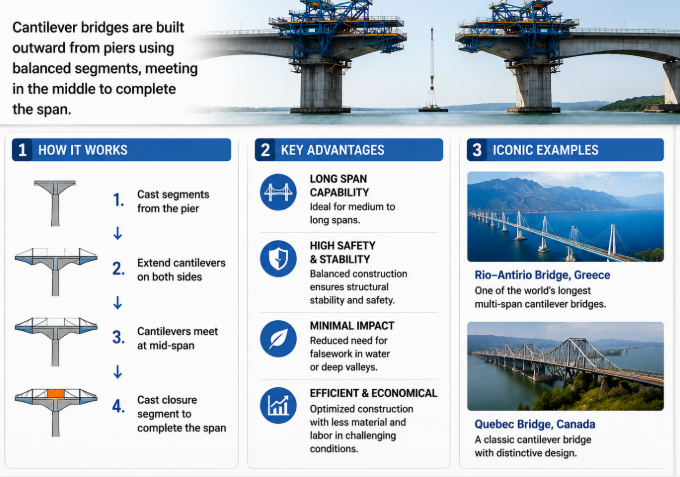

The cantilever bridge is an established structural form defined by beams that project horizontally into space, supported at only one end, allowing engineers to achieve clear spans over formidable geographic barriers.
The architectural and engineering concept of the cantilever dates back centuries, originating from simple timber structures used in ancient Asia to cross mountain streams. In modern civil engineering, a cantilever structure functions by anchoring a rigid structural element securely into a pier or abutment, leaving the opposite end free to extend outward without intermediate support. When two such cantilevers extend from opposite sides of an obstacle and meet in the center, they can either connect directly to form a continuous beam or support a separate suspended span between them.
Stage | Structural State | Mechanical Alignment & Geometry |
Stage 1: Pier Table Setup | Fixed anchor point over central column | Initial baseline elevation set; zero bending moment recorded on the pier shaft. |
Stage 2: Segment Extension | Symmetrical horizontal projection | Balanced growth outward; tensile stress concentrates along upper structural deck fibers. |
Stage 3: Mid-Span Closure | Opposing cantilever tips meet | Mid-span continuity joint cast; structure transitions from independent cantilevers to a continuous beam. |
During the industrial revolution, the development of structural steel and reinforced concrete transformed the cantilever from a rudimentary utility into a primary choice for long-span infrastructure. Engineers recognized that by varying the depth of the bridge superstructure—making it deeper over the piers where bending moments are highest and shallower at the center of the span—they could optimize material efficiency. This structural configuration results in the characteristic variable-depth profile seen in most modern box girder bridges today.
The introduction of prestressed concrete technology in the mid-twentieth century further expanded the capabilities of cantilevered construction. High-strength steel tendons threaded through internal ducts allowed concrete elements to resist substantial tensile stresses. This engineering evolution paved the way for the balanced cantilever method, where specialized equipment travels along the completed deck to assemble the next segment, eliminating the need for ground-based crane access.
Understanding the mechanical principles of cantilever construction requires an analysis of structural equilibrium, where tensile stresses dominate the top deck fibers and compressive forces are concentrated along the bottom girder elements.
The structural behavior of a cantilever bridge during construction is fundamentally different from its behavior during its final operational lifespan. When a segment is cantilevered out from a central pier, the top of the box girder experiences intense tension because the weight of the extended arm pulls downward, trying to rotate the structure around the pier axis. To counteract these forces, high-strength prestressing tendons are tensioned along the top slab of the girder, compressing the concrete and enabling it to withstand the structural loading.
Structural Element | Stress State | Primary Resistance Mechanism |
Top Flange / Deck | High Tension | Internal longitudinal post-tensioning tendons clamped at joint interfaces. |
Bottom Flange / Soffit | High Compression | High-strength concrete mass cross-section absorbing horizontal thrust. |
Vertical Web Walls | Vertical Shear | Interlocking internal stirrups combined with vertical prestressing bars. |
Closed Box Section | Torsional Twist | High structural torsional rigidity inherent in hollow box geometries. |
Maintaining strict symmetry is the most critical operational rule of the balanced cantilever method. If one cantilever arm becomes significantly heavier than the opposing arm, an unbalancing moment is introduced into the pier shaft. This structural imbalance can induce dangerous bending stresses in the vertical pier, risking structural failure. Therefore, segments must be cast or erected in pairs on alternating sides of the pier, keeping the net overturning moment as close to zero as possible.
To manage these sensitive structural alignments, modern engineering field operations utilize an advanced segmental bridge construction traveler equipped with comprehensive sensor arrays. These systems monitor the precise weight, structural alignment, and geometric deflection of each segment prior to final post-tensioning, ensuring the bridge deck matches the designed vertical alignment.
Top Flange Tension: Resisted by longitudinal internal post-tensioning tendons anchored at each segment joint.
Bottom Flange Compression: Absorbed by the high-strength concrete cross-section of the box girder.
Vertical Shear Stress: Transferred through the vertical web walls of the box girder down to the pier bearings.
Torsional Forces: Managed by the closed-loop torsional rigidity inherent in hollow box girder shapes.
In practical field operations, balanced cantilever bridges are constructed using either cast-in-place methods with traveling formwork or precast segment assembly using advanced strand jack lifting networks.
The selection between cast-in-place and precast cantilever construction depends on project logistics, total span count, and site access constraints. The cast-in-place method utilizes a formwork traveler that juts forward from the completed section of the deck. Concrete is pumped into the formwork, allowed to cure to a specified structural strength, and then post-tensioned. Once the segment is secure, the traveler moves forward to repeat the cycle. This method is highly adaptable but depends directly on concrete curing times.
Phase | Action Step | Operational Quality Control |
Phase 1 | Position Equipment Frame | Anchor the traveler frame or launch structural tracks to the preceding deck segment. |
Phase 2 | Transport and Hoist | Use synchronized strand jacks to lift precast components or advance the wet-pour shutter systems. |
Phase 3 | Align and Match | Execute millimetric alignment adjustments to correct vertical grade and horizontal curve parameters. |
Phase 4 | Secure Joint and Tension | Apply structural epoxy or pour concrete joints, followed by post-tensioning internal steel cables. |
In contrast, the precast segmental method involves manufacturing the bridge segments in a controlled factory environment off-site. These precast elements are transported via barges or multi-axle trailers directly beneath the cantilever tip. A high-capacity strand jack system, mounted on a lifting frame at the edge of the completed deck, then hoists the segment vertically into position. Epoxy adhesive is applied to the joints, and longitudinal tendons are stressed to integrate the new segment into the cantilever arm.
To guarantee operational efficiency and safety across these methodologies, specialized heavy equipment manufacturers have engineered comprehensive systems that integrate structural formwork with intelligent lifting mechanisms. The deployment of a high-performance cantilever bridge construction machine combines formwork stability with automated mechanical movement, significantly reducing segment cycle times.
Parameter | Cast-in-Place Method | Precast Segmental Method |
Construction Speed | Slower (dependent on concrete curing cycles) | Faster (segments are pre-cured and ready) |
Site Logistics | Requires concrete delivery and pumping systems | Requires heavy lifting gear and transport barges |
Formwork Cost | Lower initial investment in formwork | Higher investment in segment casting yard |
Structural Joints | Monolithic concrete cast interfaces | Epoxy-sealed match-cast joint configurations |
Weight Limitations | Flexible, customized on-site casting dimensions | Limited by the capacity of the hoisting strand jacks |
Real-world engineering history showcases the extraordinary capacity of cantilever architecture through legendary structures that have set global records for clear span distance and material endurance.
The historical application of the cantilever principle includes some of the most recognizable structures in civil engineering history. The Forth Bridge in Scotland, opened in 1890, remains an iconic symbol of steel cantilever design. Spanning the Firth of Forth with three massive double-cantilever towers, its steel tubes carry heavy rail traffic over long spans, proving the structural durability of the cantilever configuration under severe wind loads and cyclic fatigue.
In the domain of modern prestressed concrete box girder construction, the Stolma Bridge in Norway represents a pinnacle achievement. Completed in 1998, it features a record-breaking main span constructed entirely via the balanced cantilever method using lightweight aggregate concrete. The project relied on highly specialized formwork equipment and precise structural tracking to ensure the cantilever arms met perfectly over the open sea channel.
Another notable example is the Gateway Bridge in Brisbane, Australia. Built using the cast-in-place balanced cantilever technique, its main span provides critical navigation clearance for maritime shipping channels without requiring any columns in the river bed. These historical and modern reference points demonstrate that when cantilever principles are paired with state-of-the-art construction equipment, engineers can overcome extreme geographic restrictions.
Evaluating the balance of a cantilever bridge design reveals distinct operational advantages, such as minimized environmental impact, alongside complex engineering challenges like long-term concrete creep and deflection control.
The primary advantage of the balanced cantilever construction method is its total independence from the ground or water topography beneath the bridge deck. Because the structure is built entirely from the pier tops outward, there is no need to construct temporary support columns in busy waterways or deep valleys. This preserves marine ecosystems, prevents interference with shipping traffic, and eliminates the risk of temporary falsework washing away during sudden flood events.
Data Ingestion | Computational Processing | Field Mechanical Correction |
Laser sensor arrays measure actual coordinate deflections at the cantilever tip. | Central structural model parses actual coordinates vs. target theoretical grade line. | Proportional hydraulic valves alter the stroke of strand jack anchors to offset error. |
However, these benefits come with significant engineering challenges. As a cantilever arm extends further from the pier, the tip experiences natural downward deflection due to the elastic properties of concrete and steel under dead loads. Furthermore, concrete undergoes long-term structural changes known as creep and shrinkage, causing additional settlement over decades. Engineers must calculate precise camber curves—casting the segments slightly higher than the final design line—so that as the bridge deflects under its own weight, it settles into a perfectly level profile.
To counter these geometric challenges, modern field managers rely on advanced lifting systems featuring continuous telemetry feedback. The inclusion of automated hydraulic systems within a specialized bridge building structure allows operations teams to execute micro-adjustments during segment placement. This counteracts real-time thermal expansions and load variations before the segment is permanently locked into position.
Advantage - Environmental Preservation: Eliminates the need for disruptive ground-level falsework or heavy staging areas.
Advantage - Logistics Efficiency: Allows segments to be lifted directly from water transport vessels, bypassing congested land routes.
Challenge - Geometric Deflection: Demands strict precision in predicting elastic structural settlement and long-term concrete creep.
Challenge - Structural Stability: Requires continuous control over asymmetric weight distribution to protect the central pier from overturning moments.
The role of cantilever construction in modern infrastructure is defined by the integration of digital tracking networks, ultra-high-performance concrete, and automated hydraulic lifting systems.
As urban centers grow denser and the demand for long-span transportation networks increases, cantilever bridge construction methods continue to evolve. Today's engineering landscape utilizes Ultra-High-Performance Concrete (UHPC) to reduce the dead weight of box girder segments while increasing their structural strength. This allows for longer spans with thinner cross-sections, but it demands higher positioning precision during field assembly, as small alignment errors can amplify across extended spans.
System Action | Data Feedback Path | Adjustment Command |
Multiple strand jacks execute high-capacity vertical lifting cycles. | Load cells track real-time tension values across all load lines. | Central controller adjusts fluid distribution to prevent load imbalance. |
The true transformation in modern bridge building lies in digital automation. Strand jack lifting setups are no longer manually operated hydraulic pumps; they are networked into central computers using proportional control valves and digital stroke sensors. This integration allows for the deployment of specialized construction machinery featuring advanced operational technologies:
Intelligent Lifting: Centralized computer systems manage the synchronization of multiple strand jack units, ensuring smooth, automated hoisting profiles that minimize structural vibration.
Automatic Synchronous Traveling: The entire formwork traveler or lifting frame moves forward automatically along the cured concrete deck, keeping the port and starboard equipment in alignment.
Precision Positioning: Multi-axis hydraulic cylinders provide millimetric control over the segment’s orientation, making it straightforward to match complex spatial profiles and 3D design profiles.
Heavy Load Bearing: Reinforced structural steel frameworks deliver high structural capacities, enabling the safe handling of segments weighing several hundred tons.
Safety & Intelligent Monitoring: Integrated load cells and laser leveling sensors continuously transmit structural health and stress data to a central display, alerting operators to any unbalancing forces instantly.
