Balanced Cantilever Bridge Construction: How a Strand Jack Can Help

Strand jack systems offer a compact, heavy-lifting solution that stabilizes structural loads and delivers millimeter-level alignment accuracy during balanced cantilever bridge construction. When integrated into advanced segments or specialized lifting frames, these synchronized hydraulic jacks provide the high load-bearing capacity and safety monitoring required to lift and place heavy segments safely, ensuring structural equilibrium throughout the extension process.

As modern infrastructure projects demand longer spans and faster completion timelines, conventional lifting cranes often prove impractical or economically unfeasible due to site access limits. This comprehensive technical guide explores how heavy-lift strand jacks optimize balanced cantilever construction workflows. We will examine the operational mechanics of synchronized hydraulic lifting, compare traditional lifting methods against modern strand jack integration, and look at how advanced engineering systems secure structural equilibrium during complex balanced cantilever installations.

Executive Summary of Guide Outline

Understanding the Balanced Cantilever Construction Method

The balanced cantilever construction method is a specialized engineering technique where a bridge superstructure is built outward from a central pier in symmetrical, opposing segments to maintain structural equilibrium without ground support.

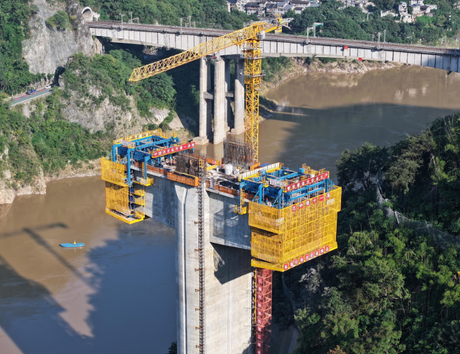

In large-span bridge engineering, the balanced cantilever technique is highly favored for navigating geographical obstacles where traditional scaffolding or falsework is impossible to erect. The process begins with the construction of the main pier and a pier table segment. Once this central platform is secured, segments are added symmetrically to both sides of the pier. Each newly installed segment is post-tensioned to the preceding segments using high-strength steel tendons, transforming the assembled structure into a self-supporting cantilever beam. This symmetry is vital; any significant weight variance between the two tips creates a massive overturning moment at the pier base, threatening the structural integrity of the entire system.

Engineers rely on specialized machinery to execute this method efficiently. For cast-in-place concrete structures, form travelers move outward step-by-step, acting as mobile casting beds. For precast concrete or steel girder bridges, specialized lifting frames lift pre-assembled segments directly into position from barges or ground transporters below. Managing these heavy elements requires robust lifting technology that handles immense static loads while allowing micro-adjustments for post-tensioning alignment. High-capacity lifting frames utilize integrated hydraulic systems to ensure segments are lifted smoothly, minimizing dynamic shocks that could induce unwanted stresses in the cured concrete sections.

The Crucial Role of Strand Jacks in Heavy Lifting Operations

A strand jack functions as a linear winch that utilizes a bundle of high-strength steel strands passing through a hydraulic cylinder equipped with automated upper and lower wedge-locking mechanisms to lift heavy structural components.

The mechanical operation of a strand jack centers on a reciprocating hydraulic cylinder combined with top and bottom anchor blocks. Each anchor block contains multiple conical wedges that fit around individual steel strands. During the upward stroke of the cylinder, the upper anchor block locks onto the strands via its wedges, pulling the strand bundle and the attached load upward. At the end of the stroke, the cylinder retracts, the lower anchor block wedges engage to hold the load securely in place, and the upper block releases to reset at the bottom position. This cyclical process allows for continuous, high-capacity vertical lifting over unlimited heights, restricted only by the length of the steel strands utilized.

In balanced cantilever setups, these compact units are positioned on top of the cantilevering structural frames or integrated directly into custom lifting assemblies. Because multiple strand jacks can be linked to a centralized control system, engineers can operate them in perfect synchronization. This capability is essential when lifting massive concrete elements or steel box girders, where uneven lifting speeds can tilt the segment, causing structural damage or misaligning the post-tensioning ducts. The incremental nature of the hydraulic stroke also allows operators to pause mid-lift for visual inspections, structural checks, or minor lateral adjustments before the final jointing process.

Core Advantages of Using Strand Jacks in Cantilever Bridges

Integrating strand jack technology into balanced cantilever workflows provides exceptional advantages in load distribution, spatial efficiency, alignment precision, and operational safety over traditional lifting mechanisms.

1. Heavy Load Bearing Capacity

Strand jacks deliver an exceptional force-to-weight ratio compared to conventional mechanical winches or heavy cranes. A single, compact strand jack can lift loads ranging from 15 to over 1,000 metric tons by increasing the number of steel strands within the bundle. For large-scale civil projects, this capability allows for the direct vertical lifting of fully precast segments or massive steel sections, eliminating the need to break assemblies down into smaller pieces.

2. Precision Positioning and Alignment

The alignment of precast or cast-in-place sections requires millimeter-level accuracy to ensure that internal post-tensioning ducts line up perfectly across joint faces. Hydraulic controls allow strand jacks to adjust structural elevation in increments of less than a millimeter. This precision positioning ensures that epoxy joints or closure pours can be executed under ideal tolerance conditions, reducing structural eccentricities.

3. Intelligent Lifting and Automation

Modern setups connect multiple jack units to a centralized PLC (Programmable Logic Controller) system. This intelligent lifting integration enables automated synchronization across all lifting points, ensuring the load remains perfectly level throughout its ascent. If any single unit experiences a pressure variation or unexpected resistance, the automated system adjusts the hydraulic fluid flow across the network instantly to maintain structural levelness.

4. Safety and Intelligent Monitoring

Equipped with digital pressure transducers, linear sensors, and load cells, strand jack networks provide real-time data back to the engineering control station. This safety and intelligent monitoring setup ensures that any structural deviations, dynamic wind loads, or unexpected weight shifts are detected instantly. The mechanical wedge-locking system also provides an inherent failsafe; if hydraulic pressure drops, the wedges immediately lock onto the strands mechanically, preventing any risk of a dropped load.

Overcoming Engineering Challenges in Cantilever Bridge Alignment

Synchronized strand jack systems mitigate critical engineering risks by maintaining precise structural balance, managing structural deflections, and isolating lifting operations from environmental disturbances.

Cantilever Deflection and Geometry Control

As a cantilever arm extends further from its pier, the structural dead load causes natural downward deflection at the tip. To compensate for this, engineers calculate a pre-camber profile, casting or positioning segments slightly higher than their final design elevation so that they deflect into the correct position under load. Strand jacks give operators the fine vertical control needed to match this precise pre-camber curve during assembly. By utilizing an advanced Intelligent Cantilever Bridge Builder, construction crews can fine-tune the segment's spatial orientation in three dimensions before initiating the structural bonding or post-tensioning stages.

Maintaining Pier Equilibrium

The primary rule of balanced cantilever construction is preventing asymmetrical loading on the central pier. If one side of the cantilever becomes significantly heavier than the other, it creates an overturning moment that can induce structural cracking or cause pier failure. Strand jacks address this risk by allowing simultaneous, synchronized lifts on both sides of the pier table. By pairing two lifting units to a single control station, the upward movement of segments can be balanced perfectly, ensuring the net horizontal and rotational forces acting on the permanent pier remain within safe design limits.

Wind Loads and Environmental Factors

High-altitude bridge construction is constantly subjected to unpredictable wind forces, which can cause suspended loads to sway or rotate, creating dangerous dynamic forces. Strand jack systems offer greater stability in high winds than long-cable crane configurations because the strand bundle forms a stiff, direct vertical link between the lifting frame and the load. This rigidity reduces lateral sway. When supported by a rigid structural framework, such as an Intelligent Cantilever Bridge Builder, wind-induced motion is effectively controlled, allowing operations to proceed safely in conditions that would halt standard crane operations.

Comparing Strand Jacks with Traditional Bridge Lifting Methods

When evaluated against conventional cranes or heavy launching gantries, strand jack systems offer distinct technical benefits in terms of structural footprint, setup flexibility, and specialized lifting capacity.

While mobile and tower cranes are useful for handling lighter secondary materials or smaller structural components, they struggle with the heavy weights of main bridge segments at extended radii. A crane positioned on the ground or a barge requires a massive boom length to reach high pier tables, reducing its safe lifting capacity.

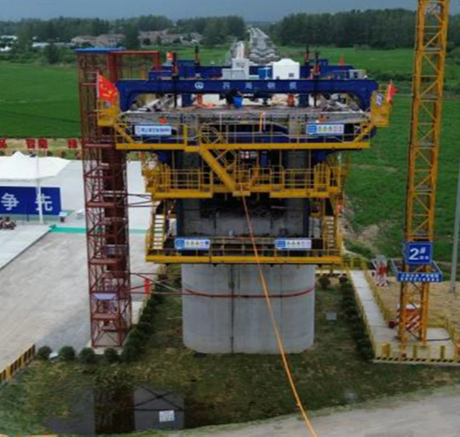

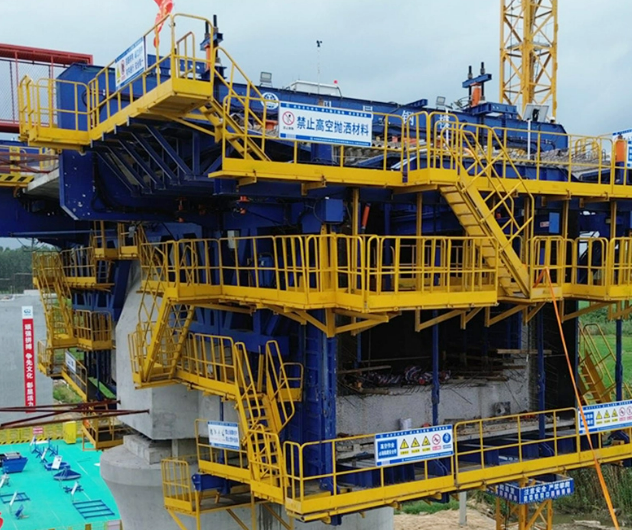

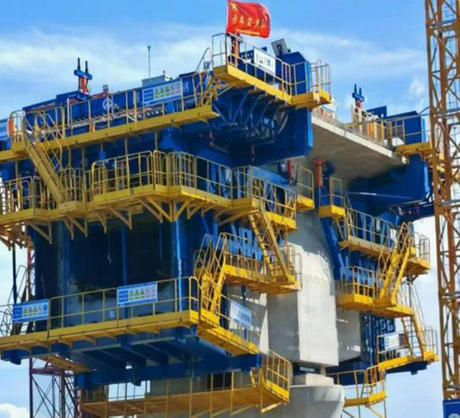

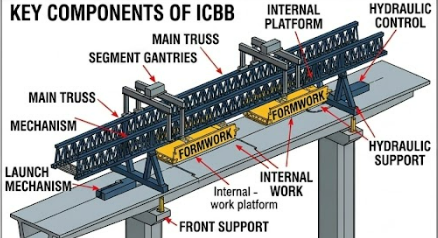

In contrast, strand jack systems are positioned directly on top of the permanent piers or moving traveler frames. This ensures that the lifting path remains short and vertical regardless of how high or long the bridge span becomes. For projects requiring continuous segment placement across multiple spans, deploying a dedicated Intelligent Cantilever Bridge Builder integrated with compact strand jacks significantly reduces equipment mobilization costs and accelerates the overall construction schedule.

Future Trends in Intelligent Cantilever Bridge Building Technology

The future of balanced cantilever bridge construction lies in integrating digital automation, automated traveling mechanisms, and structural health telemetry directly into the primary lifting systems.

Automatic Synchronous Traveling Systems

Next-generation cantilever systems are shifting away from manual repositioning methods. Modern form travelers and segment lifters incorporate hydraulic self-launching mechanisms that allow the entire assembly to advance to the next segment position smoothly. This automatic synchronous traveling capability reduces downtime between concrete pours or segment lifts. By linking the traveling hydraulics with the strand jack lifting controls, the entire cycle—from lifting to segment placement and advancing the machine—is managed through a unified digital interface, minimizing human error and maximizing efficiency.

Integration with Digital Twins and Building Information Modeling (BIM)

Real-time data collected by strand jack sensors is increasingly being integrated with cloud-based BIM platforms and digital twins. As a segment is lifted and post-tensioned, the actual load distributions, stresses, and deflections are cross-referenced with the design engineering models instantly. This allows engineers to spot any structural deviations immediately, optimizing the segment installation sequence on the fly and providing a comprehensive digital log of the bridge's structural history.

Enhanced Autonomous Safety Systems

As autonomous industrial tech matures, future Intelligent Cantilever Bridge Builder platforms will feature self-correcting safety routines. If an unexpected environmental event or material shift occurs during a segment lift, the automated system can pause operations, re-level the suspended load, and adjust internal post-tensioning pressures without needing manual operator intervention. This high level of automation reduces onsite labor requirements and improves safety margins during high-altitude bridge construction.

Summary of Key Insights

The balanced cantilever construction method remains an essential approach for building long-span infrastructure over demanding terrain. Successfully executing this technique depends on managing heavy loads while maintaining precise geometric alignment and structural symmetry. As outlined in this guide, strand jack systems provide the exceptional lifting power, millimeter-level precision, and integrated safety systems required to meet these engineering demands.

By utilizing synchronized hydraulic technology, modern bridge projects can overcome the physical limits of traditional cranes, ensuring safe and predictable segment placement. Investing in advanced, automated lifting solutions and integrated structural equipment allows construction firms to deliver complex bridge projects safely, efficiently, and in full compliance with modern engineering tolerances.
