Bridge Formwork Supply for Yusha Road Bridge Project, Tianjin

China Construction Third Engineering Bureau Group Co., Ltd. is a core subsidiary of China State Construction Engineering Corporation, one of the largest construction and engineering groups in the world. The company specializes in large-scale infrastructure and building projects, including highways, bridges, rail transit systems, commercial complexes, and public infrastructure. With strong engineering capabilities and extensive project experience, the company has delivered numerous major projects across China and internationally.

Project Data

Item Information

Project Name Yusha Road Connection Bridge Project

Location Binhai New Area, Tianjin, China

Project Owner Tianjin TEDA Huigu Investment Development Co., Ltd.

Main Contractor China Construction Third Engineering Bureau Group Co., Ltd.

Road Classification Urban Arterial Road Road

Layout Dual Carriageway, Four Lanes

Design Speed 50 km/h

Total Length Approx. 955 m

Main Bridge Length Approx. 539.3 m

Maximum Bridge Width 29.05 m

Total Bridge Area Approx. 14,097 m²

Main Works Bridge works, road works, drainage, lighting and traffic facilities

The bridge crosses drainage canals, the Qinbin Expressway, and local water systems before connecting to Yusha Road in the Sino-Singapore Tianjin Eco-City.

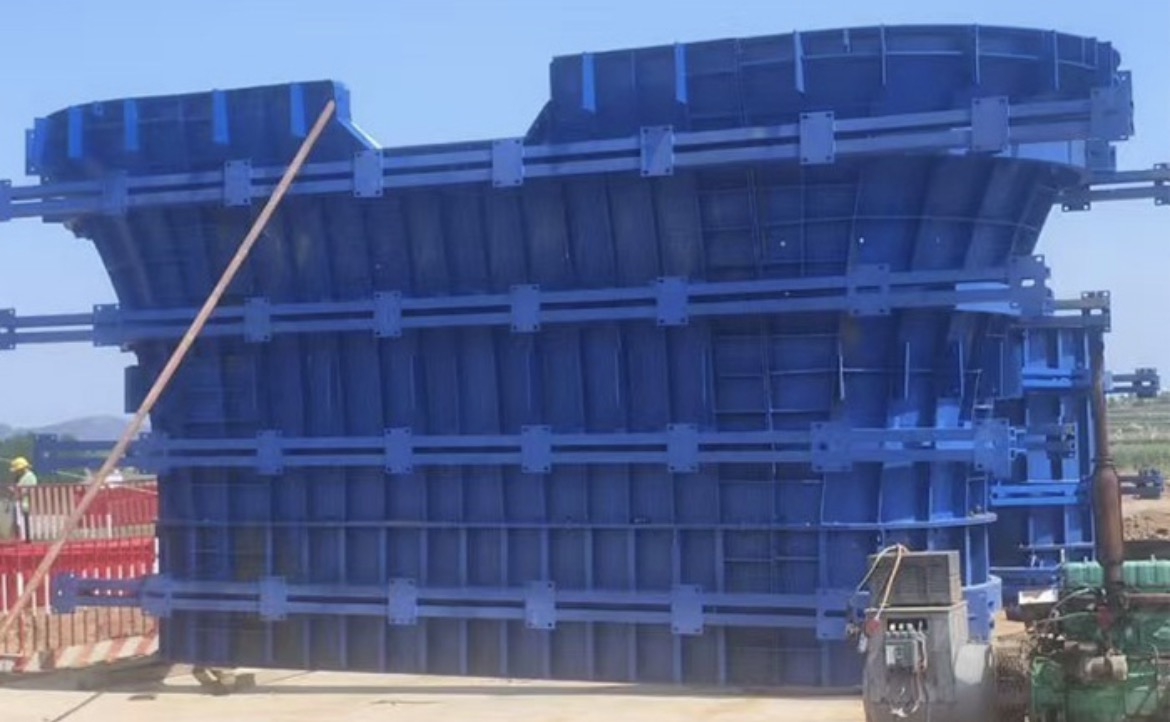

Cap Beam Formwork

• Weight per set: 10–25 tons/set

• Weight per sqm: 90–130 kg/m²

• Structure: bottom form + side panels + bracket system

Designed for heavy-load concrete structures

Technical Highlights

• High load capacity: ≥60–75 kN/m² concrete pressure

• Reusability: 200–300 cycles

• Modular design for fast installation

• Adaptable to complex pier shapes

Scope of Supply

Jinchen Zhihui provided customized bridge formwork systems including:

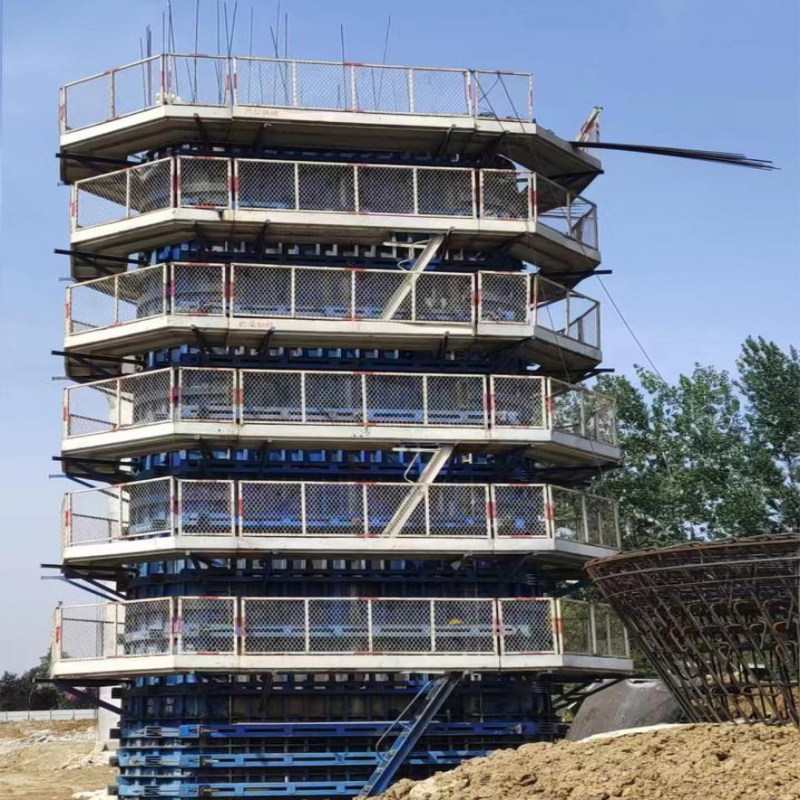

• Pier Column Formwork

• Cast-in-place Beam Formwork

• Cap Beam Formwork

All systems were designed based on the specific bridge structure and manufactured using high-strength steel structures to ensure high stability, precision, and efficient installation.

Technical Advantages

• Customized engineering design based on project requirements

• High-precision steel fabrication ensuring structural stability

• Modular design enabling quick assembly and dismantling

• Comprehensive technical support including installation guidance
